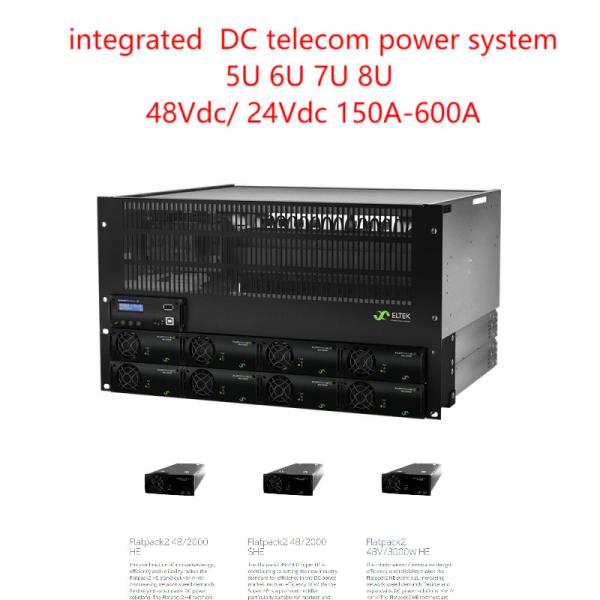

48Vdc 24Vdc Integrated Telecom Power System 150A-600A with
Flatpack2 24/1800HE Flatpack2 48/2000HE
The integrated telecom power system, from 5U to 8U , from 150A to
600A based on quantity of rectifiers used in the systems.
Which can install Flatpack2 48/2000HE, Flatpack2 48/3000HE
,Flatpack2 48/2000SHE module for -48Vdc output .For 24Vdc
output , it can install Flatpack2 24/1800HE module.
The controller for this integrated power systems is Smartpack R
controller which is the latest new design of Eltek .
Battery distributions can be produced as OEM.
| | | | | | | | |
| MODEL | 24VDC | | | 48VDC | |
Part number (Configured Telecom power system) | CTO2xxxx.nnnn | | | CTOxxxxx.nnnn | |
| | | | | |
|
| POWER MODULE |
| Flatpack2 rectifier 1) | Flatpack2 24/1800 HE | | Flatpack2 48/2000 HE or SHE Flatpack2 48/3000 HE or SHE |
| INPUT DATA |
| Voltage (range) | 85-300 VAC | | | 85-300 VAC (HE module) 85-264 VAC (SHE module) |
| Frequency | 45-66 Hz | | | | | |
| Mains configuration | Individual 2) / 1p230 VAC TN / 3p400 VAC TN / 1p230 VAC IT / 3p230
VAC IT |
| Connection | Terminal blocks, 16 mm2 max | | | | |
| OUTPUT DATA |
| Voltage | +24 VDC | | | -48 VDC | |
| Current (maximum) | 600 A | | | 600 A | | |
| BATTERY DISTRIBUTION | |
| Number of battery breaker positions | 6x 100 A | | | | | |
| LVBD | Default 300 A / 600 A | | Optional 150 A / 300 A / 500 A / 600 A |
| LOAD DISTRIBUTION | |
| Number of load MCB positions | 18x 18 mm or 9x 18 mm + 6x 27 mm | | | |
| LVLD | Optional 300 A / 600 A | | Optional 150 A / 300 A / 500 A / 600 A |
| Load breaker type | DIN rail mounted, 18 mm and 27 mm wide (13 mm on request) | |
| CONTROL AND MONITORING | |
| Control and Monitoring unit 3) | Smartpack R | | | | | |
| Inputs | 6x Digital inputs (for monitoring of external equipment) | |
| Outputs | 6x Alarm relays | | | | | |
Solutions
We provide a complete solutions including site survey, propose
professional plan according to customer’s request ,technical
support, and maintenance service for Telecommunication Companies in
and out of China. We have a competent team and a network of trusted
Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios,
load and full load and current sharing test to ensure the quality
of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The
only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction
document later to give you a more comprehensive and direct
introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent
renewal of supply, flexible provided according to different to
different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and
the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It
has already had a certain reputation. We will carefully analyze it.
If it is indeed our quality problem, you can rest assured that it
will do things according to the contract agreement and will never
let you have any after the worries, our service team will be happy
to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before
posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad
quality products within guarantee time.
