6kVA AC Indoor Eltek Rectiverter Cabinet System CTEJ0843.4000

Eltek Rectiverter Indoor cabinet system 6 kVA AC + 12,8-24 kW DC with AC/DC input (CTEJ0843.4000 CTEJ0843.4001 ) 6kVA AC Indoor Eltek Rectiverter Cabinet System CTEJ0843.4000

Eltek Rectiverter Indoor cabinet system 6 kVA AC + 12,8-24 kW DC with AC/DC input (CTEJ0843.4000 CTEJ0843.4001 )

The Rectiverter indoor system combines both AC and DC feed into one common unit.Simultaneously it provides AC backup power for 230 Vac loads, and 48 Vdc power for DC loads and battery charging.

It’s designed for a protection class of IP20-21. The total DC output can be configured up to 24kW DC load where the limitation for AC load is set to max 6kVA.

Key features

l 230 Vac single phase input
l 400 Vac three phase input
l 48 Vdc input/output
l Single phase output
l Max 6kVA AC output
l Max 24kW DC output
l 1 pole AC distribution option
l 2 pole AC distribution option
l -48 Vdc distribution option
l Built in transfer technology
l 150% overload capability, 15s
l 600% quick trip current, 20ms
l Hot pluggable
l Smartpack2 controller
Smartpack S controller

Parameters :

Rectiverter Indoor system
Models / ordering information 6kVA+12,8 kW DC		6kVA+16,8 kW DC			6kVA+ 16,0 kW DC		6kVA+24,0 kW DC
Part number CTEJ0843.4000		CTEJ0843.4001			CTE20843R1.4000		CTE30843R1.4000
AC OUTPUT DATA
Voltage (default) / (adjustable range)	230 V_AC / 200 - 240 V_AC
Frequency (default inverter mode)	50 Hz (adaptive)
Frequency (set-able inverter mode)	50Hz, 60Hz or last synced 50/60Hz (adaptive)
Power maximum (continuous / overload (<15s) )	4800 W (6000 VA) / 8000 VA
Current maximum (continuous / overload (<15s) )	26A_RMS / 34,8A_RMS
Current (maximum) Quick trip (20ms)	120A (6 x nominal)
Hold up (Voltage dips) (before switching to battery)	> 5 ms @ 4800W load
THD	< 1.5 % at resistive load
Output features	Fuse in L and N, Hot pluggable
DC OUTPUT DATA
Voltage (default) / (adjustable range)	53.5 V_DC / 43 - 58 V_DC
Power (maximum @nominal input) 12,8 kW ¹⁾		16,8 kW ¹⁾	16,0 kW ¹⁾			24,0 kW ¹⁾
Current (maximum @V_OUT ≤ 48 V_DC) 267 A ¹⁾		350 A ¹⁾	333 A ¹⁾			500 A ¹⁾
Hold up time, maximum output power	>10ms; V_OUT > 41 V_DC
Output features	Short circuit proof, Over voltage Shutdown
INPUT DATA
AC Mains Input Voltage (3 phase Y)	400 V_AC
Surge Protection	OVP Class 2
AC Current/Phase(at nominal output voltage) (depending on type) 28-58 A_RMS ³⁾
Frequency (default: sync range)	47-53 Hz
Frequency (set-able: sync range)	47-53 Hz, 57-63 Hz or both (adaptive)
Power Factor / THD	> 0.99 at 50% load or more / < 3.5%
DC Voltage nominal / extended range (no overload)²⁾	45 - 58 V_DC / 40 - 45 V_DC
DC Current (maximum)	128 A / 180A during overload (15s)
Input features	Fuse in L and N, Hot pluggable, Varistor, Hot pluggable AC input individual screw terminals 10 mm2 for L₁, L_2, L_3, N & PE Battery breaker (plug-in type), LVBD default
LOAD DISTRIBUTION 6kVA+12,8kW DC		6kVA+16,8kW DC	6kVA+16,0 kW DC			6kVA+24,0 kW DC
LVLD	300 A
1 pole AC distribution (L connection on MCB)	22A, 46A, 4*10A C					26A, 210A C
-48 V_DC distribution ( priority load ) 410A,416A,432A,463A		410A,216A,432A,463A		410A,416A,432A,463A		410A,416A,632A,663A
-48 V_DC distribution (no priority load)	210A, 216A, 232A, 263A					210A,216A,332A,363A
Battery breaker	3*100 A, D (plug-in)					3*200 A, D (plug-in)
OTHER SPECIFICATION
Control and monitoring (see Smartpack2 datasheet)	Smartpack S panel mount					Smartpack 2
Efficiency >96% (mains mode (AC/AC and AC/DC)), >94% (inverter mode (DC/AC))
Operating temperature -40 to +55°C (-40 to +131°F), humidity 5 - 95% RH non-condensing
Storage temperature -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing
Dimensions[WxDxH] / Weight 600 x 600x 2000mm (23,7 x 23,7 x 78,8”) / 150 kg (551 lbs)
Protection class IP 20
DESIGN STANDARDS
Electrical safety EN 60950-1, EN 62040-1 UPS safety
EMC ETSI EN 300 386 V.1.6.1, FCC CFR 47 Part 15 EN 61000-6-1 /-2/-3/-4
Environment ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) RoHS (2011/65/EU) and WEEE (2002/96/EC) compliant
1) AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 10,9 kW/18,9 kW at full AC power and nominal input for 230V_AC. 2) 40 - 45 V_DC: reduced performance - no power boost and increased voltage THD on AC output	3) If DC voltage is pulled below 43V the input current may increase above this level

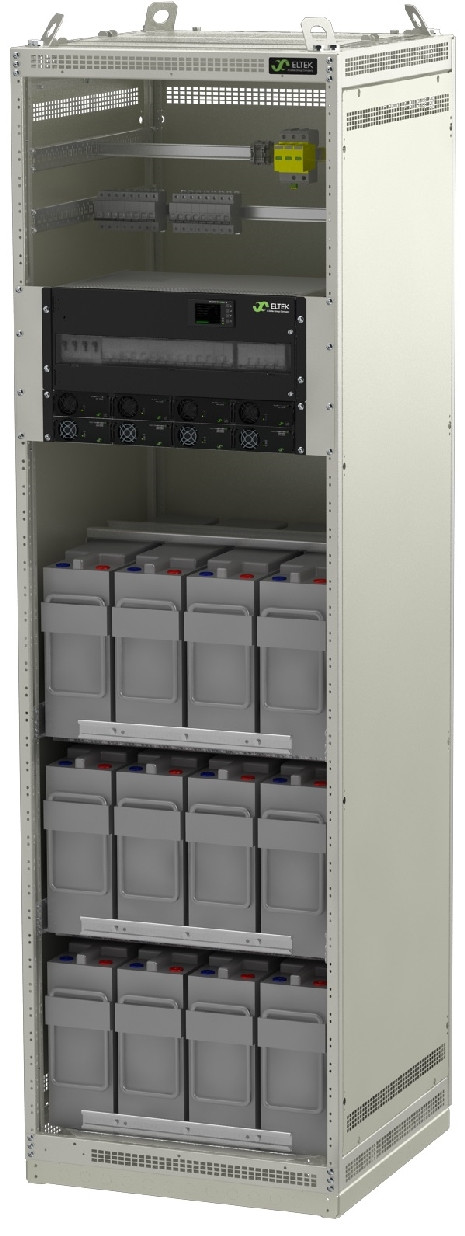

* The indoor Rectiverter Cabinet with AC &DC feed in one cabinet

6kVA AC Indoor Eltek Rectiverter Cabinet System CTEJ0843.4000

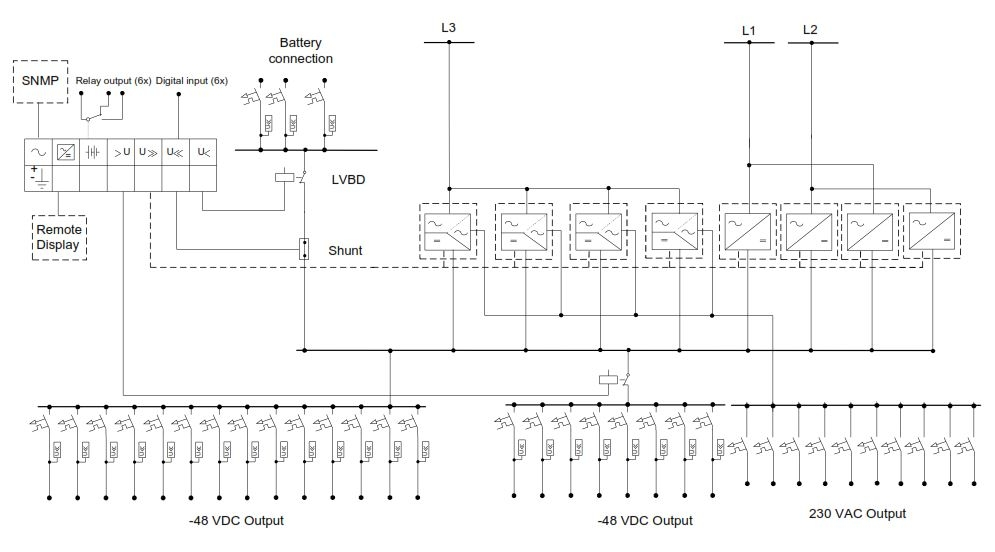

Schematic Optional 1

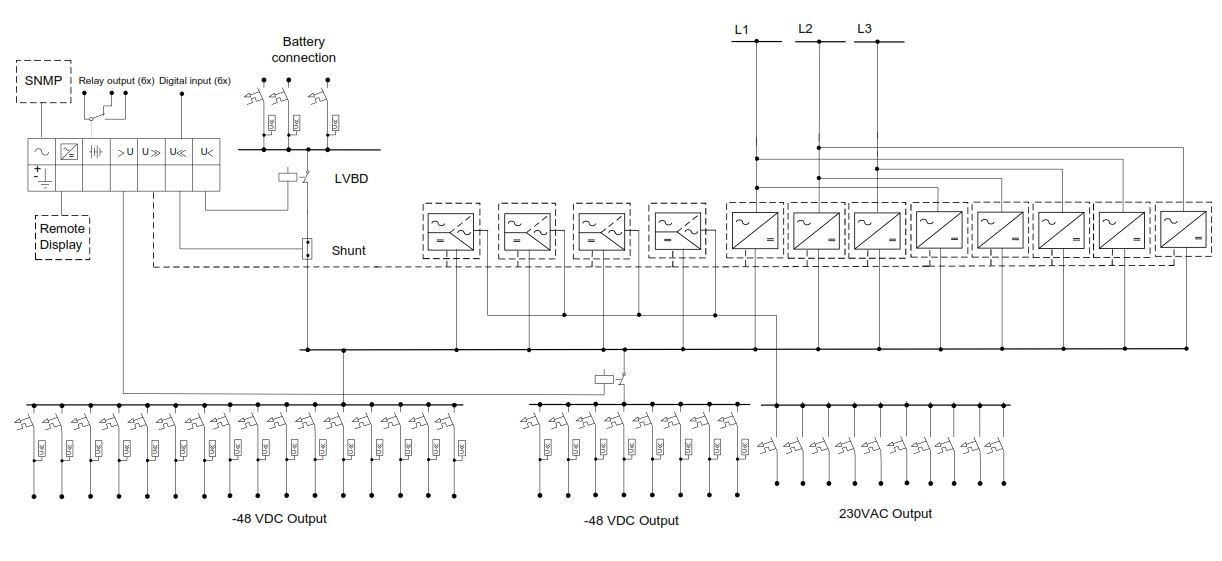

Schematic Optional 2

Schematic Optional 3
