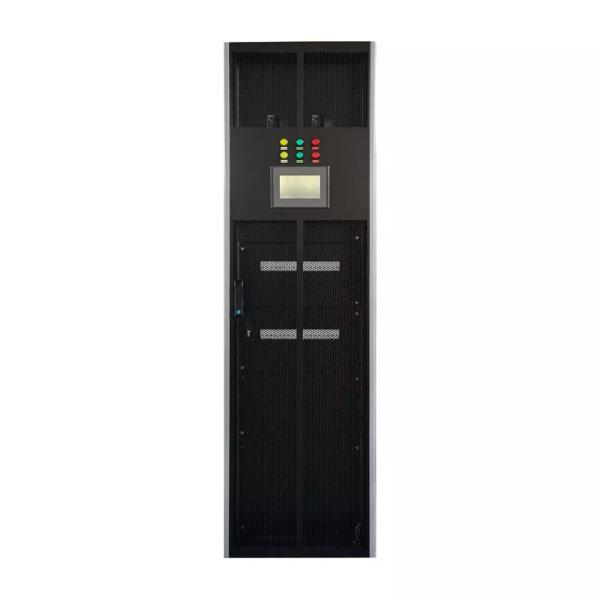

Oem 42u Fiber Low Voltage Pdu Power Distribution Unit Rack Cabinet
Data Center PDU
Oem 42u Spcc Cold Rolled Steel 36kv Modular Ac Power Distribution
Cabinet
Structural features
1.Welded frame, easy disassembly, solid andreliable structure
2.Square and round mounting holes Doubldesign, flexible
installation of equipment andaccessores 3.Front and rear doors open
angle> 130 degrees, convenient equipment shelves and mantenance
4.Vertical support can adjust the different installation depth,
compatible with all major manufacturers of IT equipment 5.Cabinet
front and rear doors and both sides can be fully sealed to prevent
the formationof short air leakage 6.Sever rack beams, columns take
up smaspace, make full use of the available space inside the
cabinet.
| Name | Quantity ( PCS ) |
| Input Voltage | 220/380v, TN-S system1 |
| Frequency | 50/60Hz±10%2 |
| Output Voltage | 220V(1Ph+N+PE)；380V(3Ph+N+PE)4 |
| Capacity | 10～630A |
| Distribution Architecture | Support single bus, double bus and multi bus systems Branch air switch supports fixed switch, hot plug air switch or hot
plug adjustable phase air switch |
| System Function | three phase voltage, current, frequency, active power, reactive
power, power factor, active electric energy, reactive electric
energy, zero ground voltage, neutral line current, total harmonic
content (THD), 2nd-63rd harmonic, current voltage unbalance,
current K factor (KF), voltage crest factor (CF), telephone
waveform factor (thff), peak voltage, voltage and current sequence,
ambient temperature and humidity |
| voltage, current, frequency, active power, reactive power, power
factor, active electric energy, reactive electric energy, 2-31
harmonics |
| Accuracy | Incoming line: voltage / current level 0.2, active power / electric
energy level 0.5s, reactive power / electric energy level 1 |
| Outgoing line: voltage / current level 0.5, active power / active
electric energy / reactive power / reactive electric energy level 1 |
| SPD | Standard C-level surge protection: 20KA, 40KA |
| Display | Standard 7-inch touch screen, optional 10 inch or above |
| Communication interface | One way RS485 Modbus-RTU |
| One way RJ45 10/100m, TCP/IP Modbus Protocol (optional) |
| Dimension | 600/800(W)*1000/1100/1200(D)*2000/2200(H)mm |
Solutions
We provide a complete solutions including site survey, propose
professional plan according to customer’s request ,technical
support, and maintenance service for Telecommunication Companies in
and out of China. We have a competent team and a network of trusted
Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios,
load and full load and current sharing test to ensure the quality
of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The
only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction
document later to give you a more comprehensive and direct
introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent
renewal of supply, flexible provided according to different to
different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and
the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It
has already had a certain reputation. We will carefully analyze it.
If it is indeed our quality problem, you can rest assured that it
will do things according to the contract agreement and will never
let you have any after the worries, our service team will be happy
to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before
posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad
quality products within guarantee time.
