Eltek Flatpack2 IBB system Industrial DC Systems IBB 24-220VDC with
Smartpack2 Master controller
Eltek Flatpack2 IBB system Industrial DC Systems IBB 24-220VDC with
Smartpack2 Master controller
Flatpack2 IBB system
Eltek IBB Power systems and building blocks are built around our
Flatpack2 High Efficiency (HE) rectifiers and designed for a number
of power-critical Industrial applications, including Power
Generation & Distribution, Rail, Marine & Offshore, Oil & Gas and
other demanding industries.
IBB Systems includes the Flatpack2 High Efficiency rectifier for DC
power supply facilities and can be used with or without battery.
All in all this gives the Industrial Building Blocks (IBB) superior
flexibility and can be used in a various kind of application
Key features
- Compact design
- Simple installation
- 85-300 Vac input
- House up to 8 rectifiers
- 2-16kW output
- DC distribution
- Max 300A dc output
- Graphical 3,2 tft display
- Ethernet for remote
- 6 digital inputs
- 6 relay outputs
- SNMP protocol with trap
- Hot pluggable
INDUSTRY APPLICATIONS
Power Utilities
·
Low & High Voltage switchgear
·
Transformer & Substations
·
Power Generation & Distribution
·
Control & protection
·
SCADA Communication
·
Emergency lighting
Offshore and process industry
·
Safety and Automation Systems
(SAS)
Marine
·
Communication systems onboard
ships
Railway & Metro infrastructure
·
Control & protection
·
Power conversion
·
Signaling
·
GSM-R
·
Safety Systems
·
Communication systems

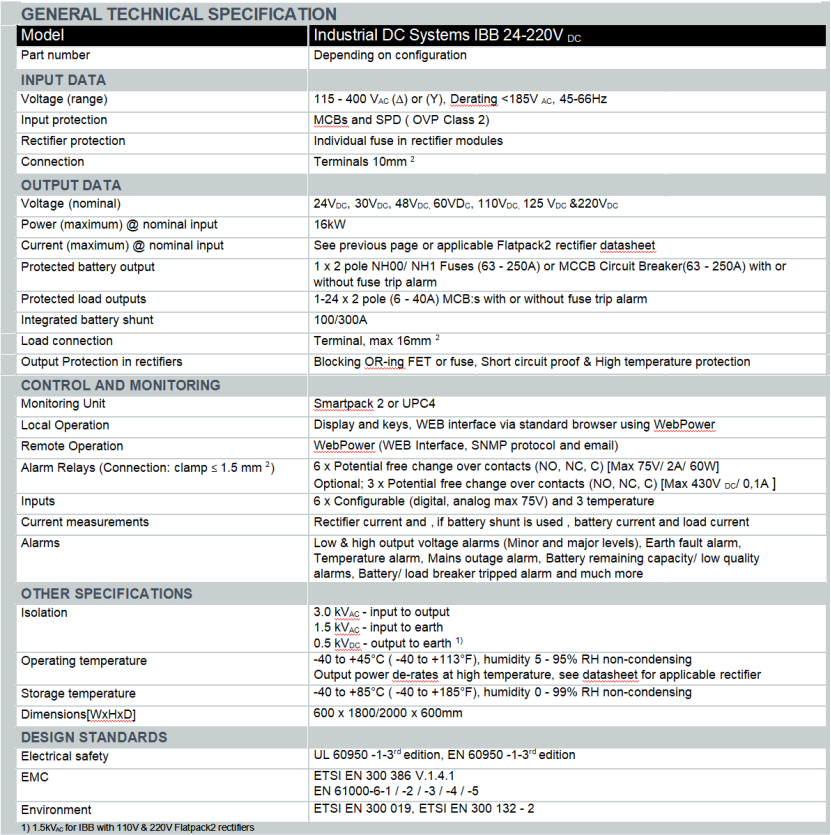

Parameters :
| AVAILABLE 24V/ 30V RECTIFIERS |
|
Part Number |
Description | Voltage Range |
Efficiency | Maximum Current | Output protection | |
| 1 Module | Max/ Syst. | |
| 241115.205B | Flatpack2 24V/ 40A HE | 21.7 – 28.8 V | > 95% (30-65% load) 4 | 0 A 4 | / 160A F | use | |
| 241115.205 | Flatpack2 24V/ 1800W HE | 21.7 – 28.8 V | > 95% (30-65% load) 7 | 5 A 4 | / 300A F | use | |
| 241115.200 | Flatpack2 24V/ 2000W | 21 – 29 V | > 89% (25-100% load) 8 | 4 A 4 | / 300A B | locking diode | |
| 241115.250 | Flatpack2 24V/ 2000W WOR | 21.5 – 36 V | > 91% (25-85% load) 7 | 0 A 4 | / 280A F | use | |
|
| AVAILABLE 48V/ 60V RECTIFIERS | |
| |
Part Number |
Description | Voltage Range |
Efficiency | Maximum Current | Output protection | |
| | 1 Module | Max/ Syst. | |
| | 241115.705B | Flatpack2 48-60V/ 15A HE | 39.9 – 72 V | > 95.5% (50-100% load) 1 | 5 A 8 | / 120A F | use | |
| | 241115.705 | Flatpack2 48-60V/ 2000W HE | 39.9 – 72 V | > 95.5% (25-75% load) 4 | 1.6 A 8 | / 166,4A Fu | se | |
| | 241115.100 | Flatpack2 48V/ 2000W | 43.2 – 57.6 V | > 91.5% (45-95% load) 4 | 1.6 A 8 | / 166,4A B | locking diode | |
| | 241115.105 | Flatpack2 48V/ 2000W HE | 43.5 – 57.6 V | > 96% (30-70% load) 4 | 1.6 A 8 | / 166,4A F | use | |
| AVAILABLE 110V/ 125V RECTIFIERS | |
| |
Part Number |
Description | Voltage Range |
Efficiency | Maximum Current | Output protection | |
| | 1 Module | Max/ Syst. | |
| | 241115.805B | Flatpack2 110-125V/ 10A HE | 89.2-171.6 V | > 94% (45-100% load) | 10 A 8 | / 80 A O | ring diode | |
| | 241115.805 | Flatpack2 110-125V/ 2000W HE 8 | 9.2-171.6 V | > 94% (30-70% load) 1 | 6.8 A 8 | / 134,4A O | ring diode | |
