    Eltek Type 3 Outdoor Telecom Cabinets

    Ask Lasest Price
    Brand Name : Eltek
    Model Number : Type 3
    Certification : CE.UL
    Payment Terms : L/C, T/T
    Supply Ability : 400 sets /month
    Delivery Time : 8-10 weeks
    • Product Details
    • Company Profile

    Eltek Type 3 Outdoor Telecom Cabinets

    Eltek Type 3 Outdoor Telecom Cabinets

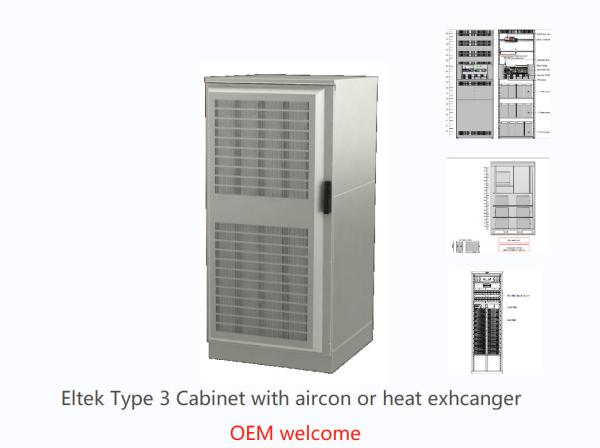

    Eltek Type 3 Outdoor Cabinet Systems Outdoor Power Cabinet 1.2m / 1.5m / 1.8 m / 2m / 2.2 height with aircon


    Eltek Type 3 cabinet platform is designed for a variety of applications and can be equipped with your special demands. The cabinet is well suited for power, batteries and telecom or industrial equipment. All integrated into one package.

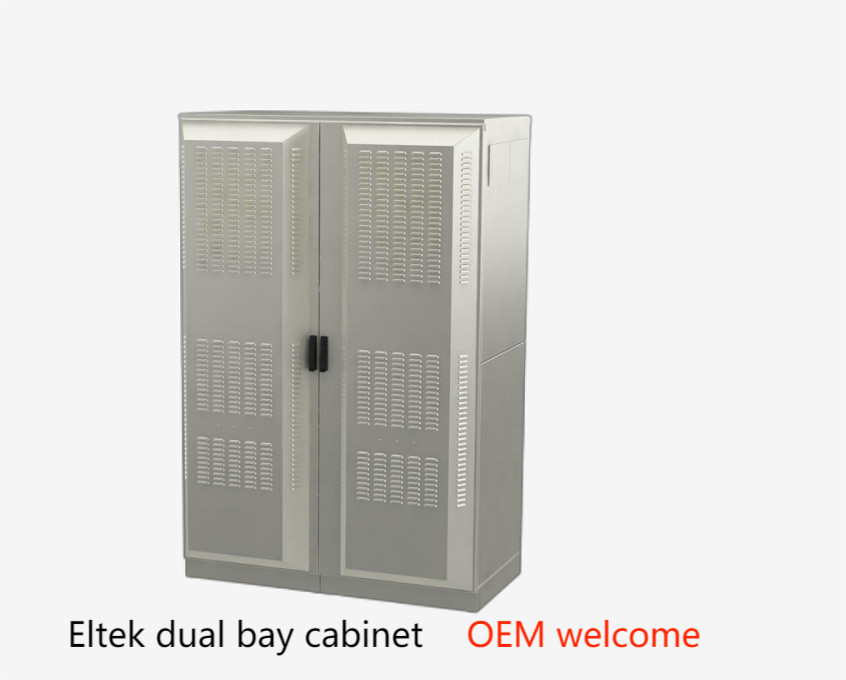

    The solutions has a unique cube deigns that give flexibility to various heights of cabinet. For example, it includes 1.2m,1.5m,1.8m.2m and 2.2m. With single bay cabinet, dual chamber cabinet and dual bay cabinet, all them can be quipped with heat exchanger or aircon cooling.

    Application:

    The Type 3 cabinet is well suited for a wide range of telecom and industrial application as below :

    • Radio Access Networks (2G.3G,4G,5G )
    • Optical Networks
    • Cable TV
    • DSL
    • Scada
    • Rail and Metro
    • Power Distribution


    Parameters :

    Model1.2m1.5m1.8m2.0m2.2m
    Physical Specification
    Width (mm)700700700700700
    Depth(mm)770770770770770
    Weight(kg)68.6kg94kg100kg102.5105kg
    Rack Space21U28U34U39U44U
    The above info does not include air cooling and power core
    Thermal Management Optional
    Cooling capacity2000W
    Fan and filterSingle or Dual fan (Opitonal)
    Fans Spec.48Vdc/ 100W/ IP44
    Fans speed controlTemp. Regulated ;Easy change inlet filter; Easy change outlet filter
    Physical Spec.Integrated into the cabinet
    Construction Spec.
    MaterialGalvanized steel
    Splash GuardAluminium made with large openings to ensure low speed airflow
    Heater(S)Optional one or two heaters
    Filter detectionOptional
    Air conditioning unit
    Power InputAC-ACU,0.57KW AC-ACU 2KW DC-ACU 0.52KW DC-AC 2KW
    Power Input230Vac 50/60hz230Vac 50/60hz48Vdc nominal48Vdc nomial
    Cooling capacity570W@50hz2000W520W2000W
    Heating capacity500W1000W500W600W
    Hybrid Cooling UnitActive cooling /Free cooling solutions (AC or FC)
    Construction Spec.
    Skin Material1.5 mm thick electro- galvanized steel (corrosion-resistant)
    Frame MaterialGalvanized Steel
    Power Coat PaintOutdor Polyester (Light gray RAL7035 coating)
    InsulationClosed cell insulation
    Rail Spec
    ConstitutionGalvanized Steel
    Mounting PatternEIA Standard with holes for cage nuts / Optional M5 or M6 kits
    Mounting19 inch mounting /23 inch moutning for OEM
    Cable EntryBottom cable access
    Related Configuration of Power Core
    Power CoreCTO20808S.XXX or optional
    RectifiersFP2 48/2000HE or FP2 48/3000HE or Optional
    ControllerSmartpack S panel /Smartpack2 etc.



    * OEM ODM configruation of outdoor cabinet welcome

    Eltek Type 3 Outdoor Telecom Cabinets
    Eltek Type 3 Outdoor Telecom CabinetsEltek Type 3 Outdoor Telecom CabinetsEltek Type 3 Outdoor Telecom Cabinets

    Eltek Type 3 Outdoor Telecom CabinetsEltek Type 3 Outdoor Telecom Cabinets

    Eltek Type 3 Outdoor Telecom Cabinets


    Solutions
    We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

    FAQ :
    1. How do you control the quality?
    A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

    2. What is your minimum order quantity?
    A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

    3. Can you introduce your company?
    A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

    4. What are the advantages of your company?
    A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

    5. Can i send samples?Report it to me along with the price?
    A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

    6. How do your company deal with the problem on quality?
    A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

    7 What about the quality ?
    A:100% original with new package. we will test each item before posted to make sure each item with good quality.
    8 How many months for guarantee ?
    A: 1 year quality guarantee
    9 How to deal with any inferior -quality goods ?
    A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
