Eltek Solar Charger Flatpack2 48/3200 HE Solar Flatpack2 HE solar
3200W Flatpack2 48V solar charger (241119.650 )
Eltek Solar Charge Extension Kit 2U/3U shelf with Flatpack2
48/3200HE Flatpack2 48/1500HE (CTZ00000.1358 )

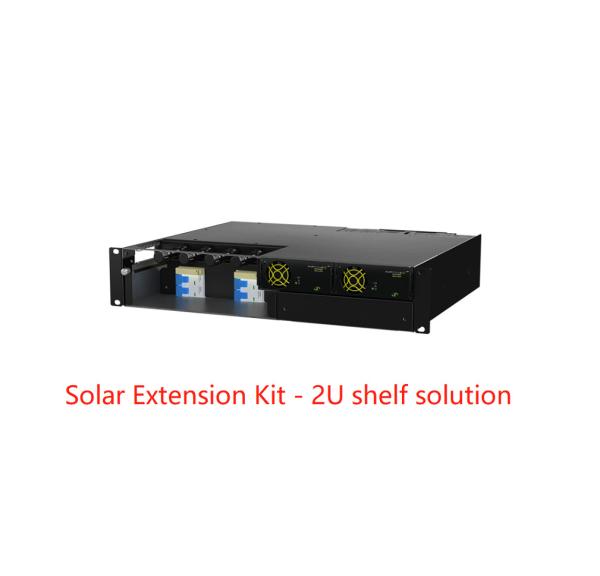

Solar Extension Kit - 2U /3 U shelf solution
Specially designed with the MC4 connectors for cables from PV
panels, service switches and optional SPDs. The front and rear MC4
connection mechanism enables easy on-site installation into both
outdoor and indoor enclosures.
Key features
- Flatpack2 HE solar with MPPT
- Hot pluggable modules
- Earth fault detection
- Max PV capacity 6.4kW
- PV connection panel
- MC4 connectors
- Service switches
- DC SPD Type 1+2 (option)
Parameters :
|
|
|
|
|
|
|
| MODEL | 2U SOLAR EXT. KIT | 3U SOLAR EXT. KIT |
| Part number | CTZ00000.1358 | CTZ00000.1255 |
|
| POWER MODULES |
|
| Flatpack2 Solar Charger 1) | Flatpack2 48/3200 HE Solar |
|
|
|
| Peak efficiency | 97 % |
|
|
|
| Max no. of modules | Up to 2pcs | Up to 4pcs |
|
| INPUT DATA (SOLAR CHARGER) |
| Voltage (operating range) | 85-420 VDC |
|
|
|
| Voltage (MPPT range) 2) | 100-380 VDC |
|
|
|
| Voltage (start-up) | 150 VDC |
|
|
|
| Maximum current | 20.3 ADC |
|
|
|
| Protection | Fuse, varistor for transient protection, reversed polarity,
shutdown when VIN is too low, earth fault check during start-up |
| PV CONNECTION PANEL |
|
| Service switches for PV arrays | 2 pcs 2-pole | 4 pcs 2-pole |
|
| MC4 connectors | 4 pcs (2 pcs per one PV array | ) 8 pcs (2 pcs per one PV array) |
| DC SPD (option) | Up to 2 pcs (Type 1+2) | Up to 4 pcs (Type 2) |
|
| OUTPUT DATA |
|
| Voltage (default) | 53.5 VDC |
|
|
|
| Voltage (adjustable range) | 42 3) - 57.6 VDC |
|
|
|
| Max power, VIN ≥ 170 VDC | 6400 W | 12800 W |
|
| Max current, @VOUT = 48 VDC | 133 A | 266 A |
|
| Protection | Overvoltage shutdown, short circuit proof, high temperature, hot
plug-in inrush current limiting |
|
| OTHER SPECIFICATIONS |
|
| Alarms (Red LED) | High and low temperature shutdown, Converter Failure, Overvoltage
shutdown on output, Fan failure, Low voltage alarm, CAN bus failure |
| Warnings (Yellow LED) | Low input voltage, Converter in power derate mode, Remote current
limit activated, Input voltage out of range, flashing at
overvoltage |
| Normal (Green LED) | Input and output ok |
|
|
|
| Operating temperature | -40 to +75 °C [-40 to +167 °F] 3) |
|
|
| Storage temperature | -40 to +85 °C [-40 to +185 °F |
|
|
|
| Dimensions (W x D x H) 5) | 482 x 384 x 89 (2U) mm [19 x 15.1 x 3.5 inch] | 482 x 384 x 133 (3U) mm [19 x 15.1 x 5.3 inch] |
| Weight (excluding modules) | Approximately 7 kg [15 lbs] | Approximately 10 kg [22 lbs] |
| DESIGN STANDARDS |
|
| Electrical safety | EN 60950-1:2006/A2:2013, EN 62368-1:2020/A11:2020, EN
62109-1:2010/-2:2011 |
| EMC | ETSI EN 300 386 v1.3.2 EN 61000-6-1:2019, EN 61000-6-2:2019, EN 61000-6-3:2007/A1:2011/AC:2012, EN 61000-6-4:2019 |
|
| Environment | ETSI EN 300 019-2-1 v2.3.1:2017 (Class 1.2) ETSI EN 300 019-2-2 v2.4.1:2017 (Class 2.3) ETSI EN 300 019-2-3 v2.4.1:2015 (Class 3.2) ETSI EN 300 132-2 v2.6.1:2019 Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2.
Other operating conditions as per IEC 62040-5-3:2016 clause 4.3,
must be advised |
| 1) See Flatpack2 Solar charger datasheet for details 2) At nominal output voltages. MPPT will operate down to 100V, but
the maximum input current limitation will de-rate maximum output
power 3) Stand-by / test operation (VOUT < 48 VDC) limited for VIN
> 250 VDC 4) +45 to +75 °C [+113 to +167 °F] with de-rated performance 5) Recommended minimum cabinet depth is 400 mm [15.7 inch] |
