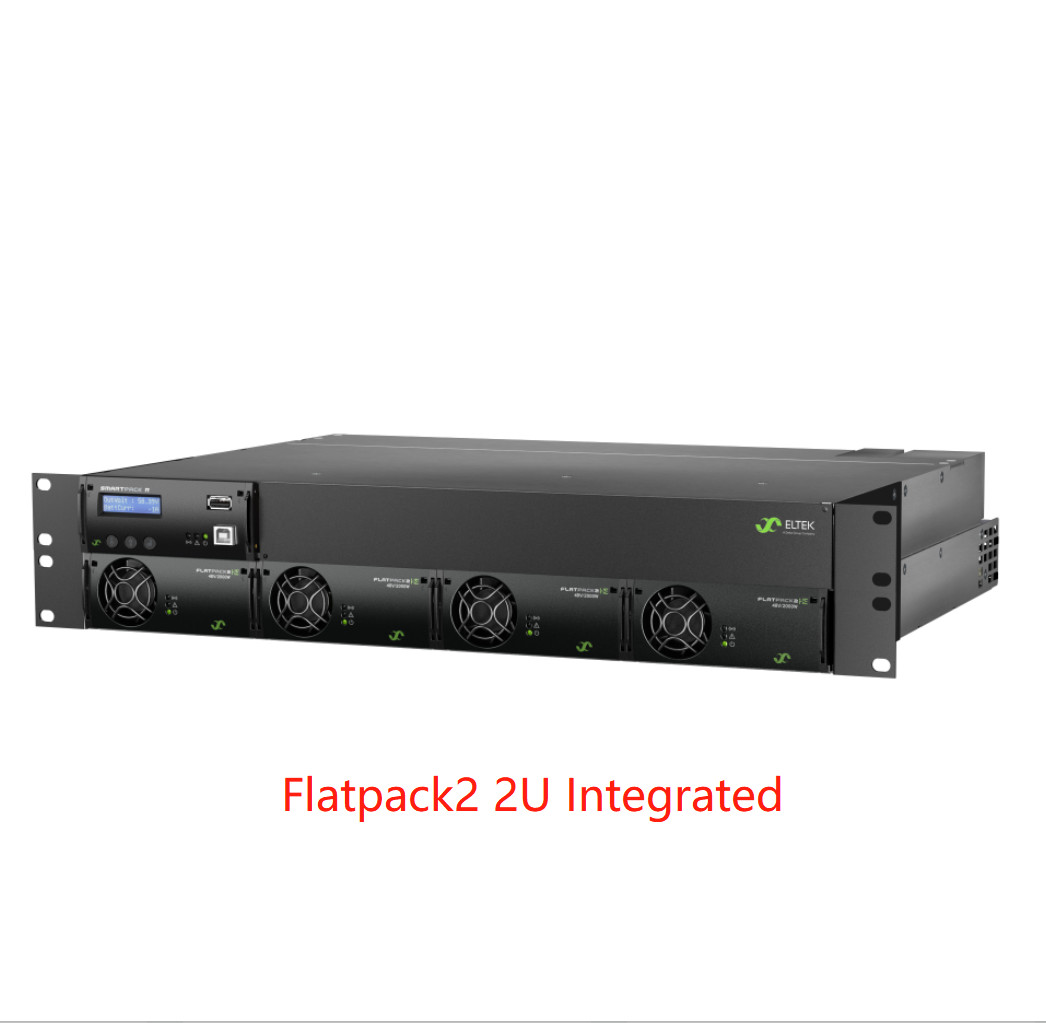

Eltek Flatpack2 2U integrated systems with 32A /60A distribution
load with Smartpack controller (CTO20402.xxxx)
Eltek Flatpack2 2U integrated systems with 32A /60A distribution
load with Smartpack controller (CTO20402.xxxx)
The Flatpack2 2U Integrated has been specifically designed to meet
the demand for higher density and
more compact power solutions.
It is suitable for applications needing an expandable, easily
serviceable
and reliable power supply, fitting within a minimal space
KEY FEATURES
· COMPLETE SYSTEM
· SMARTPACK R CONTROLLER
· ADVANCED CONTROL AND
MONITORING THROUGH ETHERNET
PORT
· USB TYPE A HOST FOR PLUG-IN
DEVICES (EG. WIFI; FLASH DRIVES)
· USB TYPE B FOR CONTROL
· SUPER HIGH EFFICIENCY
RECTIFIERS
· HOT PLUGGABLE MODULES
· 2X BATTERY BREAKER POSITIONS
· LVBD (OPTIONAL)
· 6X LOAD MCB DISTRIBUTION
· LVLD (OPTIONAL)
· 2U HEIGHT
· GLOBAL APPROVALS
Techinical Data:
| | | | | | | | |
| MODEL | 32A DISTRIBUTION | | 60A DISTRIBUTION | |
Part number (Configured Telecom power system) | CTO20402.nnnn | | | CTO20402.nnnn | |
| | | | | |
|
| INPUT DATA |
| Voltage (range) | 85-300 VAC (HE module) 85-264 VAC (SHE module) | | | | |
| Frequency | 45-66 Hz | | | | | |
| Mains configuration | Individual 1), 1p230VAC TN, 3p400VAC TN, 1p230VAC IT or 3p230VAC IT |
| Connection | Rear connection on Faston connectors (6.3 mm) 1) or Terminal
blocks, 16 mm2 max |
| OUTPUT DATA |
| Voltage | -48 VDC | | | | | |
| Current (maximum) | 150 A | | | | | |
| BATTERY DISTRIBUTION | |
| Number of battery breakers | 2x | | | | | |
| Battery breaker rating | 100 A (maximum) | | | | |
| LVBD | 150 A (optional) | | | | | |
| Connection | Rear connection on M6 Studs | | | | |
| LOAD DISTRIBUTION | |
| Number of load MCBs | 6x | | | 6x | | |
| Load MCB rating | 2-32 A | | | 2-60 A | | |
| LVLD | 150 A (optional) | | | 150 A (optional) | |
| Connection | Rear connection on Terminal blocks, 4 mm2 max | Rear connection on Terminal blocks, 10 mm2 max |
| CONTROL AND MONITORING | |
| Control and Monitoring unit | Smartpack R 3) | | | | | |
| Inputs | 6x Digital inputs (for monitoring of external equipment) | |
| Outputs | 6x Alarm relay | | | | | |
| Connection | Rear system connection on terminals, 2.5 mm2 max | |
| OTHER SPECIFICATIONS | |
| Insolation | 3.0 kVAC – input and output 1.5 kVAC – input earth 0.5 kVDC – output earth | | | | |
| Operating temperature | -40 to +65 °C [-40 to +145 °F] | | | | |
| Storage temperature | -40 to +85 °C [-40 to +185 °F] | | | | |
| Dimensions (W x D x H) 4) | 482 x 370 x 89 mm [19 x 14.9 x 3.5 inch] | | |
| Weight (excluding modules) | 5 kg [11 lbs] | | | | | |
| DESIGN STANDARDS | |
| Electrical safety | IEC/UL 60950-1 CSA 22.2 | | | | | |
| EMC | ETSI EN 300 386 v1.3.2 EN 61000-6-2 /-3 | | | | |
| Environment | ETSI EN 300 019-2-1 (Class 1.2) /-2 (Class 2.3) /-3 (Class 3.2) ETSI EN 300 132-2 Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2.
Other operating conditions as per IEC 62040-5-3:2016 clause 4.3,
must be advised |
1) When system is configured without SPD device option 2) See Flatpack 2 rectifier datasheet for more details | 3) See Smartpack R datasheet for more details 4) Recommended minimum cabinet depth is 400 mm [15.7 inch] |
