Eltek Flatpack2 Power System 5U 6U 7U with 300A/ 500A distribution
FP2 2000W /FP2 3000W module
Flatpack2 5U-7U Integrated
The 4U distribution is designed to meet the demand for compact and
flexible DC power solutions. It is based on building blocks and has
a variety of configurations depending on power, controller, battery
section and load section.
Pluggable battery breakers and DIN mounted load breakers ensures
easy configurability as well as “in field” replacement. The power

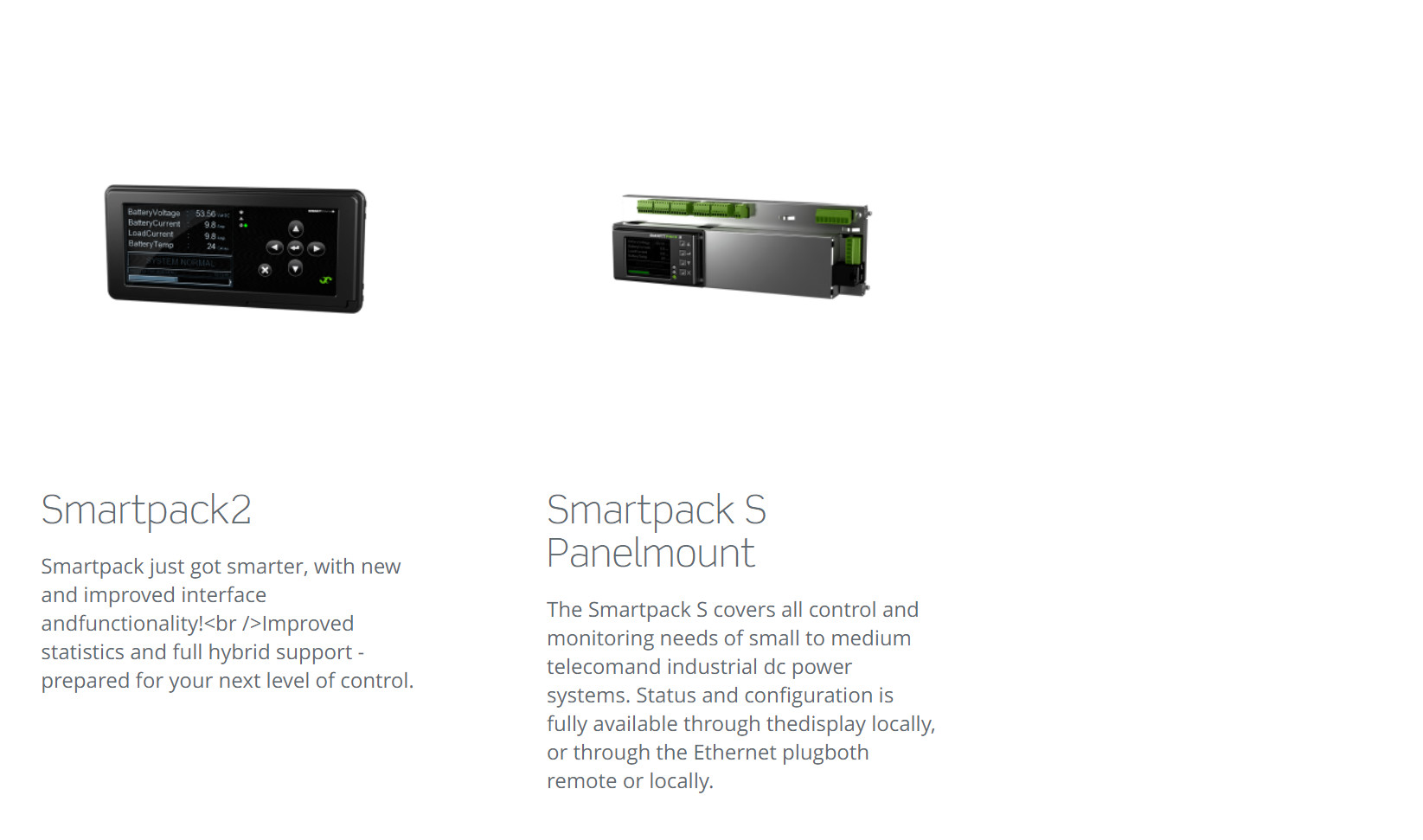

system has two controller options, Smartpack2 or Smartpack S which
both has all the functionality required in present and future
applications.
Key features
- Complete system
- Smartpack2 or Smartpack S controller
- Hot pluggable modules
- 19”/4U distribution chassis with hinged front door
- Upto 8x battery breakers
- LVBD
- Upto 20x load breaker positions
- LVLD (optional)
- Global approvals
Techinical Data:
| | | | | | |
| MODEL | 300A DISTRIBUTION | | 500A DISTRIBUTION | |
| Part number (Configured power system) | CTOxxxxx.nnnn | | | CTOxxxxx.nnnn | |
| POWER MODULE |
| Flatpack2 rectifier 1) | Flatpack2 48/2000 HE or SHE Flatpack2 48/3000 HE or SHE | | | | |
| INPUT DATA |
| Voltage (range) | 85-300 VAC (HE module) 85-264 VAC (SHE module) | | | | |
| Frequency | 45-66 Hz | | | | | |
| Mains configuration | 1p230 VAC TN / 3p400 VAC TN / 3p230 VAC IT | 2x 3p400 VAC TN / 2x 3p230 VAC IT |
| Connection | Terminal blocks, 10 mm2 max | | | | |
| OUTPUT DATA |
| Voltage | -48 VDC | | | -48 VDC | |
| Current (maximum) | 300 A | | | 500 A | | |
| BATTERY DISTRIBUTION | |
| Number of breaker positions | 4x or 6x 100 A | | | 8x 100 A | |
| LVBD | 300 A (default) | | | 500 A (default) | |
| Battery breaker type | Plug-in type | | | | | |
| LOAD DISTRIBUTION | |
| Number of load positions | Up to 20x 18 mm | | | Up to 16x 18 mm | |
| LVLD (optional) | Up to 2x 150 A or 1x 300 A (max 6x 18 mm or 4x 27 mm on each LVLD) | 150 A (max 6x 18 mm or 4x 27 mm on LVLD) |
| Load breaker type | DIN rail mounted, 18 mm and 27 mm wide (13 mm wide MCBs and plug-in
type breakers on request) Configurable with all brands |
| CONTROL AND MONITORING |
| Control and Monitoring unit 2) | Smartpack2 or Smartpack S | | Smartpack2 | |
| Mounting location | Door panel mounted | | | | | |
| Local operation | Self-explanatory menu guided operation via touch-pad and graphical
colour display |
| Remote operation | Ethernet for remote/local monitoring and control via WEB Browser | |
| OTHER SPECIFICATIONS | |
| Operating temperature | -40 to +70 °C [-40 to +158 °F] 3) | | | | |
| Storage temperature | -40 to +85 °C [-40 to +185 °F] | | | | |
| Dimensions (W x D x H) 4) | 482 x 380 x H mm [19 x 14.9 x H inch] Height (H): - 5U: 222 mm [8.8 inch] - 6U: 267 mm [10.5 inch] | 482 x 380 x H mm [19 x 14.9 x H inch] Height (H): - 6U: 267 mm [10.5 inch] - 7U: 311 mm [12.3 inch] |
| Weight (excluding modules) | Approximately 5 kg [11 lbs] | | | | |
| DESIGN STANDARDS | |
| Electrical safety | IEC/UL 60950-1 | | | | | |
| EMC | ETSI EN 300 386 v1.3.2 EN 61000-6-1 /-2 /-3 /-4 | | | | |
| Environment | ETSI EN 300 019-2-1 (Class 1.2) /-2 (Class 2.3) /-3 (Class 3.2) ETSI EN 300 132-2 Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2.
Other operating conditions as per IEC 62040-5-3:2016 clause 4.3,
must be advised |
| 1) See Flatpack2 rectifier datasheet for details 2) See controller datasheet for details | 3) +45 to +70 °C [+113 to +158 °F] with de-rated performance 4) Recommended minimum cabinet depth is 400 mm [15.7 inch] |
