Eltek Systems Hybrid Power Core Flatpack2 Hybrid System with MPPT
and PV connection DC power supply 300A-500A (CTO30408S.4xxx)
Description :
The Hybrid power core has integrated battery distribution, DC load
distribution, rectifiers and solar chargers with PV connection
panel. The power core is flexible and can easily be upgraded to
meet changing demands.
A typical hybrid site is powered from PV panels in addition to
Gen-set and/or mains connection.
Key features
- Complete system
- Smartpack2 Touch controller
- Advanced control and monitoring through ethernet port
- SHE FP2 rectifiers
- HE FP2 solar with MPPT
- Max PV capacity 24kw
- PV connection panel with DC SPD (option)
- Hot pluggable modules
- 19”/4U distribution chassis
- Up to 8x battery breaker positions
- LVBD
- Up to 18x load breakers positions
- LVLD1
- LVLD2 (optional)
- Global approvals
APPLICATIONS
- TELECOM – MOBILE / WIRELESS
- · Radio Base stations/ Cell Sites
- · LTE / 4G / WiMAX
- · Distributed Antenna Systems
- · Microwave
- · Broadband
- TELECOM – FIXED
- · Telephony servers / switches
- · Fiber Optics / FTTx
- · Microwave
- · Cable
- · Broadband
Techinical Data:
| Model | 300A distribution | 500A distribution |
| Part number | CTO30408S.4XXX | CTO3080XXS.4XXX |
| Power Module | | |
| Flatpack2 Rectifiers | FP2 48/3000HE or SHE |
| Flatpack2 Solar charger | Flatpack2 48/3200HE solar |
| Input Data (Rectifiers ) | |
| Voltage range | 85-300vAC (HE model) 85-264Vac (SHE solar ) |
| Frequency | 45-66HZ |
| Mains Configuration | 3*1p 230Vac | 2*3 P 400Vac |
| 1*3P 230Vac | Dual mains |
| Connection | Terminal blocks , 10mm㎡ max |
| Input data (Solar charger) | |
| Voltage Range | 85-420Vdc (operating range )/ 100-380Vdc (MPPT range) |
| Voltage start up | 100Vdc |
| Max current | 20Adc |
| PV connection panel | |
| Service switches for PV arrays | 4 pcs 2 pole | 4 or 8 pcs 2 pole |
| DC SPD Type 2 (option) | Up to 4 pcs | Up to 8 pcs |
| Output data | | |
| Voltage | -48 Vdc | -48Vdc |
| Current (max) | 300A | 500A |
| Battery distribution | | |
| Number of breaker positions | 6 single pole | 8 single pole |
| LVBD | 300A | 500A |
| Battery breaker type | Plug in type |
| Load Distribution | | |
| Number of load positions | Up to 18*18 mm | Up to 16*18 mm |
| LVLD1 | 300A | 300A |
| LVLD2 (optional) | 150A | 150A |
| Load breaker type | DN rail mounted |
| Control and Monitoring | | |
| Control and monitoring unit | Smartpack2 Touch +Smartpack2 Basic + I/Q monitor Type |
| Mounting location | Door panel mounted | |
| Local operation | As the user manual | |
| Remote operation | Ethernet for remote /local monitring and control via Web |
| Other Spec. | | |
| Operation tem. | -40 to +70 | |
| Storage tem. | -40 to +70 | |
Integrated with Smartpack2 Touch + Smartpack2 Basic + I/O Monitor
Type2 &Flatpack2 Solar & Flatpack2 SHE
Flatpack2 48/3000 SHE Rectifier module

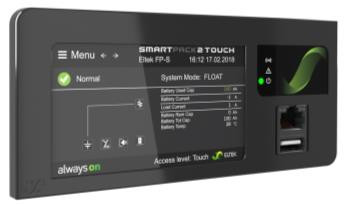

Smartpack 2 Controller
Flatpack2 48/1500HE solar
Solutions
We provide a complete solutions including site survey, propose
professional plan according to customer’s request ,technical
support, and maintenance service for Telecommunication Companies in
and out of China. We have a competent team and a network of trusted
Partners around the world.
