Eltek Telecom Monitoring Module Smartpack2 Touch for DC power systems(Part No.:242100.510 . 242100.501 , 242100.601 )

Eltek Telecom Monitoring Module Smartpack2 Touch for DC power systems(Part No.:242100.510 . 242100.501 , 242100.601 )

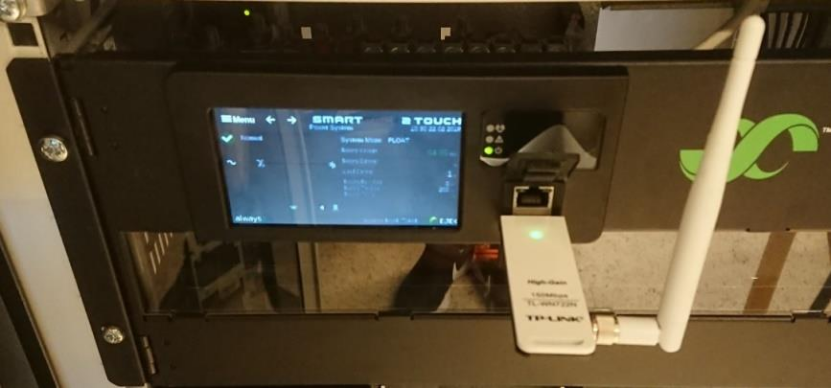

The Smartpack2 Touch controllers are powerful modules used as master controllers in the distributed control system of Smartpack2-based power supply systems.

It is equipped with a graphical display with capacitive touch interface to show and control functions of system.

SP2Touch is the interface for system information, and communicates with SP2 Basic, SP2

Basic Industrial and other nodes and power modules via CAN.

Connecting to the Ethernet port allows easy access to the SP2Touch embedded web pages.

The Smartpack2 Touch controller have the same shape as the older Smartpack2 Master

(2U high and 160mm wide) and can easy replace it in the power system’s front panel or

door.

Key Features :

• ü Touch Screen 4.4’’ running the web interface
• ü LEDs for local visual alarming (Major, Minor, Power ON)
• ü Ethernet port at the back for permanent connection for monitoring and control
• ü Ethernet port at the front - a 'Craft port' with limited functionality and fixed ip-adr.
• ü USB port in the front and back for flash drives, Wi-Fi Adapter Dongle etc.
• ü RS-232 and RS-485- for communication w/3rd party equipment
• ü SNMP protocol with TRAP, SET and GET on Ethernet.
• ü Email of TRAP alarms
• ü Comprehensive logging
• ü Automatic battery monitoring and test
• ü Battery lifetime indication
• ü Battery used and remaining capacity (Ah or %) monitoring
• ü User defined alarm grouping (Boolean logic for grouped alarms)
• ü Comprehensive generator/hybrid/DC solar system control and monitoring features

Parameters :

Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.

8 How many months for guarantee ?
A: 1 year quality guarantee

9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.

Ding Ding Future Power Company provide professional solutions to the telecommunications and network power industries across Africa,the Middle East , South America and Southeast Asia clients.

we have grown rapidly since our inception in 2017 as a small company for telecom after-sale service for famous brands.

After several years development, we can supply several brands such as Vertiv, Eltek, ZTE, DPC, VAPEL, DELTA, CE+T,eNatel etc.

With rich experience for both AC and DC applications ,we offer turn key solutions that simplify project execution and procurement with a single point of contract. Treat us as an extension of your Telecom and IT facilites departments ready to help solve any type of power problem or complete a new power project together.

At the moment, we have 5 tech engineers and 15 skilled workers for produce indoor telecom cabinet, outdoor telecom cabinet, inverter system , inverter cabinet, big systems which used in telecom, base stations, railways , 4G/5G, industiral etc.

For any projects ,tender case, we will response in 72 hours; for small cases, we will response in 24 hours.

We welcome any clients around the world to inquiry with us at any time !
