    Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W

    Ask Lasest Price
    Brand Name : Mean Well
    Model Number : SD-100-12
    Certification : CE/UL
    Price : 1 USD
    Payment Terms : L/C, T/T
    Supply Ability : 3000 pieces per month
    Delivery Time : 12-16 weeks
    • Product Details
    • Company Profile

    Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W

    Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100WMean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W


    Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W


    Features :

    • 1.5~2KVAC isolation by models
    • 12V/0.25A auxiliary output for SD-500/1000

    MODELSD-100A-5SD-100B-5SD-100C-5SD-100D-5SD-100A-12SD-100B-12SD-100C-12SD-100D-12SD-100A-24SD-100B-24SD-100C-24SD-100D-24

    OUTPUT

    DC VOLTAGE5V12V24V
    RATED CURRENT18A20A8.5A4.2A
    CURRENT RANGE0 ~ 18A0 ~ 20A0 ~ 8.5A0 ~ 4.2A
    RATED POWER90W100W102W100.8W
    RIPPLE & NOISE (max.) Note.2100mVp-p120mVp-p150mVp-p
    VOLTAGE ADJ. RANGE4.5 ~ 5.5VDC11 ~ 16VDC23 ~ 30VDC
    VOLTAGE TOLERANCE Note.3±2.0%±1.0%±1.0%
    LINE REGULATION±0.5%±0.3%±0.2%
    LOAD REGULATION±0.5%±0.3%±0.2%
    SETUP, RISE TIME2s, 50ms(only D mode) at full load
    HOLD UP TIME (Typ.)20ms(only D mode) at full load

    INPUT

    VOLTAGE RANGEA:9.5 ~ 18VDC B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~ 144VDC or 85 ~ 132VAC
    EFFICIENCY (Typ.)78%74%75%76%82%75%77%80%84%78%81%83%
    DC CURRENT (Typ.)9.7A/12V4.8A/24V2.4A/48V1.8A/96V10.4A/12V4.8A/24V2.4A/48V1.8A/96V10A/12V4.8A/24V2.4A/48V1.8A/96V
    INRUSH CURRENT (Typ.)D:18A/96VDC
    LEAKAGE CURRENT<0.75mA/120VAC(SD-100D)

    PROTECTION

    OVERLOAD105 ~ 135% rated output power
    Protection type : Hiccup mode, recovers automatically after fault condition is removed
    OVER VOLTAGE5.75 ~ 6.75V/10% load16.8 ~ 20V/10% load

    31.5 ~ 37.5V

    5% load

    31.5 ~ 37.5V/10% load
    Protection type : Hiccup mode, recovers automatically after fault condition is removed

    ENVIRONMENT

    WORKING TEMP.-15 ~ +60℃(SD-100A), -10 ~ +60℃(SD-100B/C/D) (Refer to "Derating Curve")
    WORKING HUMIDITY20 ~ 90% RH non-condensing
    STORAGE TEMP., HUMIDITY-20 ~ +85℃, 10 ~ 95% RH non-condensing
    TEMP. COEFFICIENT±0.03%/℃ (0 ~ 50℃)
    VIBRATION10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

    SAFETY & EMC

    (Note 4)

    SAFETY STANDARDSIEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
    WITHSTAND VOLTAGEI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
    ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
    EMC EMISSIONCompliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
    EMC IMMUNITYCompliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020

    OTHERS

    MTBF2600.2K hrs min. Telcordia SR-332 (Bellcore) ; 399.9K hrs min. MIL-HDBK-217F (25℃)

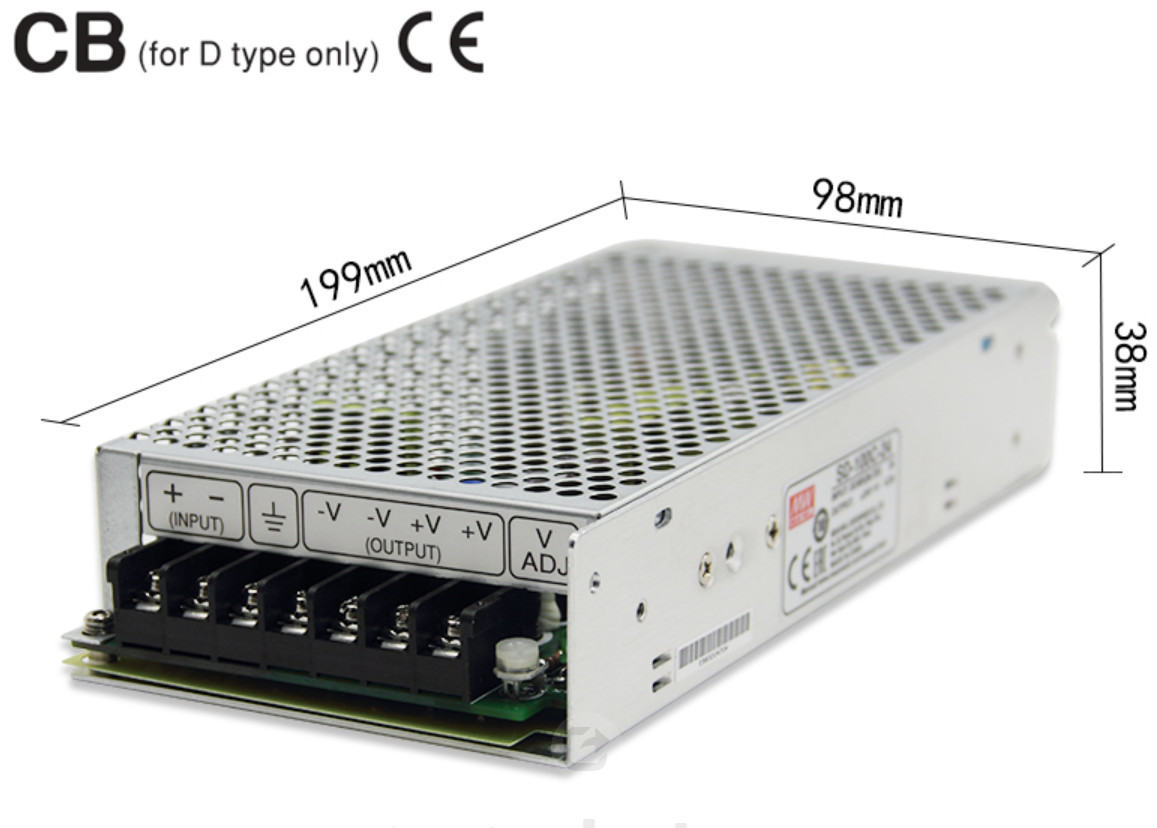

    DIMENSION199*98*38mm (L*W*H)
    PACKING0.65Kg; 20pcs/13.8Kg/0.85CUFT
    NOTE

    1. All parameters NOT specially mentioned are measured at 12,24,48,96VDC input, rated load and 25℃ of ambient temperature.

    2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

    3. Tolerance : includes set up tolerance, line regulation and load regulation.

    4. The power supply is considered a component which will be installed into a final equipment.


    Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W
    Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100WMean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100WMean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100WMean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100WMean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W


    Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100WMean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W

    Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W


    Solutions
    We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

    FAQ :
    1. How do you control the quality?
    A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

    2. What is your minimum order quantity?
    A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

    3. Can you introduce your company?
    A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

    4. What are the advantages of your company?
    A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

    5. Can i send samples?Report it to me along with the price?
    A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

    6. How do your company deal with the problem on quality?
    A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

    7 What about the quality ?
    A:100% original with new package. we will test each item before posted to make sure each item with good quality.
    8 How many months for guarantee ?
    A: 1 year quality guarantee
    9 How to deal with any inferior -quality goods ?
    A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
