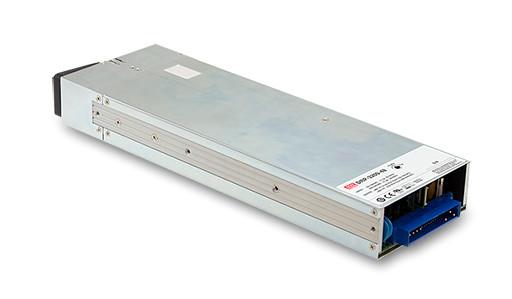

Mean Well DPR Series 3200W DPR-3200-24 DPR-3200-48 DHP-1UT DBR-3200
Wattage :
3200
Features :
Complete rack mountable front end solution: rectifier and charger
1U low profile
19 inch rack shelf available
Technical
| MODEL | DRP-3200-24 | DRP-3200-48 |
OUTPUT | DC VOLTAGE | 24V | 48V |
| RATED CURRENT | 133A | 67A |
| CURRENT RANGE | 0 ~ 133A | 0 ~ 67A |
| RATED POWER | 3192W | 3216W |
| RIPPLE & NOISE (max.) Note.2,3 | 300mVp-p | 480mVp-p |
| VOLTAGE ADJ. RANGE | 23.5 ~ 30V | 47.5 ~ 58.8V |
| VOLTAGE TOLERANCE Note.4 | ±1.0% | ±1.0% |
| LINE REGULATION | ±0.5% | ±0.5% |
| LOAD REGULATION | ±0.5% | ±0.5% |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC at full load |
| HOLD UP TIME (Typ.) | 16ms / 230VAC at 75% load 9ms / 230VAC at full load |
INPUT | VOLTAGE RANGE Note.5 | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| POWER FACTOR (Typ.) | 0.97/230VAC at full load |
| EFFICIENCY (Typ.) Note.6 | 93.5% | 94.5% |
| AC CURRENT (Typ.) Note.5 | 17A/230VAC |
| INRUSH CURRENT (Typ.) | COLD START 55A/230VAC |
| LEAKAGE CURRENT | <1.5mA / 230VAC |
PROTECTION |
OVERLOAD | 105 ~ 115% rated current |
| Protection type : Constant current limiting, shut down O/P voltage
after 5 sec. After O/P voltage falls, re-power on to recover |
OVER VOLTAGE | 31.5 ~ 37.5V | 63 ~ 75V |
| Protection type : Shut down o/p voltage, re-power on to recover |
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature
goes down |
FUNCTION |
OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 50 ~ 125% of nominal
output voltage Please refer to the Function Manual in following
pages |
| CONSTANT CURRENT LEVEL PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of
rated current. Please refer to the Function Manual in following
pages |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:short Power OFF:open.
Please refer to the Function Manual in following pages |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer
to the Function Manual in following pages |
| AUXILIARY POWER | 5V @ 0.3A, tolerance ±10%, ripple 150mVp-p, 12V @ 0.8A, tolerance
±10%, ripple 450mVp-p |
| ALARM SIGNAL | Isolated TTL signal output for T-Alarm, AC-OK and DC-OK. Please
refer to the Function Manual in following pages |
ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
SAFETY & EMC (Note 9) | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC
004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
EMC EMISSION | Parameter | Standard | Test Level / Note |
| Conducted | BS EN/EN55032 (CISPR32) | Class B |
| Radiated | BS EN/EN55032 (CISPR32) | Class A |
| Harmonic Current | BS EN/EN61000-3-2 | ----- |
| Voltage Flicker | BS EN/EN61000-3-3 | ----- |
EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 |
| Parameter | Standard | Test Level / Note |
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact |
| Radiated | BS EN/EN61000-4-3 | Level 3 |
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 |
| Surge | BS EN/EN61000-6-2 | 2KV/Line-Line 4KV/Line-Earth |
| Conducted | BS EN/EN61000-4-6 | Level 3 |
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 |
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
OTHERS | MTBF | 535.5K hrs min. Telcordia SR-332 (Bellcore) ; 44.6K hrs min.
MIL-HDBK-217F (25℃) |
| DIMENSION | 325*107*41mm (L*W*H) |
| PACKING | 2.65Kg;4pcs/11.6Kg/0.87CUFT |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC
input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12"
twisted pair-wire terminated with a 0.1uf & 47uf parallel
capacitor. 3. Under variable load application or parallel operation ripple of
the output voltage may be higher than the SPEC at light load
condition. It will go back to normal ripple level once the output
load is more than 5%. 4. Tolerance : includes set up tolerance, line regulation and load
regulation. 5. Derating may be needed under low input voltages. Please check
the derating curve for more details. 6. The efficiency is measured at 75% load. 7. If use PV signal to adjust Vo, under certain operating
conditions, ripple noise of Vo might slightly go over rating
defined in this specification. 8. Output will shut down after O/P voltage is below < 80% of
Vset for 5 sec, re-power on to recover. 9. The power supply is considered a component which will be
installed into a final equipment. All the EMC tests are been
executed by mounting the unit on a 600mm*900mm metal plate with 1mm
of thickness. The final equipment must be re-confirmed that it
still meets EMC directives. For guidance on how to perform these
EMC tests, please refer to “EMI testing of component power
supplies.” (as available on http://www.meanwell.com) 10. The ambient temperature derating of 3.5℃/1000m with fanless
models and of 5℃/1000m with fan models for operating altitude
higher than 2000m(6500ft}. ※ Product Liability Disclaimer:For detailed information, please
refer to https://www.meanwell.com/serviceDisclaimer.aspx |
