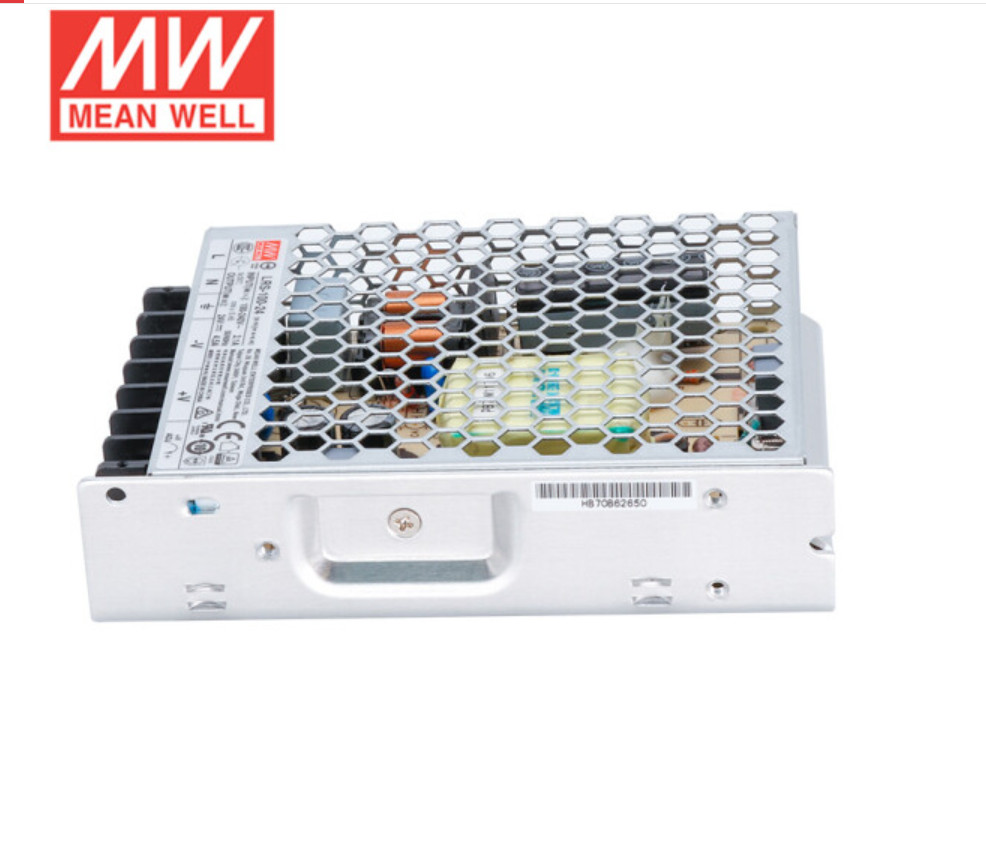

Mean Well LRS Series 100W Single Switching Power Supply LRS-100-12
12V/8.5A/100W 1U thick
Features :
- Compliance to IEC/BC/EN/EN60335-1(PD3) and IEC/BS EN/EN61558-1,2-16
for household appliance
- Operating altitude up to 5000 meters (Note.8)
- Withstand 5G vibration test
- LED indication for power on
- 100% full load burn in test
- 3 years warranty
Applications :
- Mechanical and electrical equipment
- Electronic instruments ,equipment or apparatus
- Household appliances
Description:
LRS-100 has the complete protection functions and 5G anti vibration
capability.
It is complied with the international safety regulations.
LRS-100 series serves as a high price to performance power supply
solutions for various industrial applications . .
Technical
| MODEL | LRS-100-3.3 | LRS-100-5 | LRS-100-12 | LRS-100-15 | LRS-100-24 | LRS-100-36 | LRS-100-48 |
OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 20A | 18A | 8.5A | 7A | 4.5A | 2.8A | 2.3A |
| CURRENT RANGE | 0 ~ 20A | 0 ~ 18A | 0 ~ 8.5A | 0 ~ 7A | 0 ~ 4.5A | 0 ~ 2.8A | 0 ~ 2.3A |
| RATED POWER | 66W | 90W | 102W | 105W | 108W | 100.8W | 110.4W |
| RIPPLE & NOISE (max.) Note.2 | 100mVp-p | 100mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p |
| VOLTAGE ADJ. RANGE | 2.97 ~ 3.6V | 4.5 ~ 5.5V | 10.2 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 28.8V | 32.4 ~ 39.6V | 43.2 ~ 52.8V |
| VOLTAGE TOLERANCE Note.3 | ±3.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| LINE REGULATION Note.4 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| LOAD REGULATION Note.5 | ±2.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load |
| HOLD UP TIME (Typ.) | 55ms/230VAC 10ms/115VAC at full load |
INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without
damage) |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY (Typ.) | 84.5% | 86% | 88% | 88.5% | 90% | 90.5% | 91% |
| AC CURRENT (Typ.) | 1.9A/115VAC 1.2A/230VAC |
| INRUSH CURRENT (Typ.) | COLD START 50A/230VAC |
| LEAKAGE CURRENT | <0.75mA / 240VAC |
PROTECTION | OVER LOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault
condition is removed |
| OVER VOLTAGE | 3.8 ~ 4.45V | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 18.75 ~ 21.75V | 28.8 ~ 33.6V | 41.4 ~ 48.6V | 55.2 ~ 64.8V |
| Protection type : Shut down o/p voltage, re-power on to recover |
ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
| OVER VOLTAGE CATEGORY | Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS
EN/EN62477-1; altitude up to 2000 meters |
SAFETY & EMC (Note 8) |
SAFETY STANDARDS | UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS
EN/EN61558-1/-2-16,CCC GB4943.1,BSMI CNS14336-1, EAC TP TC
004,S/NZS62368.1(by CB),KC K60950-1(for LRS-100-12/24 only), BIS
IS13252(Part1): 2010/IEC 60950-1: 2005 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS
EN/EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020,KC
KN32,KN35(for LRS-100-12/24 only) |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS
EN/EN50082-2), heavy industry level, EAC TP TC 020,KC KN32,KN35(for
LRS-100-12/24 only) |
OTHERS | MTBF | 3348.9K hrs min. Telcordia SR-332 (Bellcore) ; 677.4Khrs min.
MIL-HDBK-217F (25℃) |
| DIMENSION | 129*97*30mm (L*W*H) |
| PACKING | 0.34Kg ; 40pcs/14.6Kg/0.92CUFT |
