Metal Enclosure Charger NPB-120-24

Ask Lasest Price
Brand Name :	MEAN WELL
Model Number :	NPB-120-12 NPB-120-24 NPB-120-48
Certification :	CE
Price :	USD 299
Payment Terms :	L/C, T/T
Supply Ability :	3000 pieces per month
Delivery Time :	8-10 weeks

Add to Cart

Product Details
Company Profile

Metal Enclosure Charger NPB-120-24

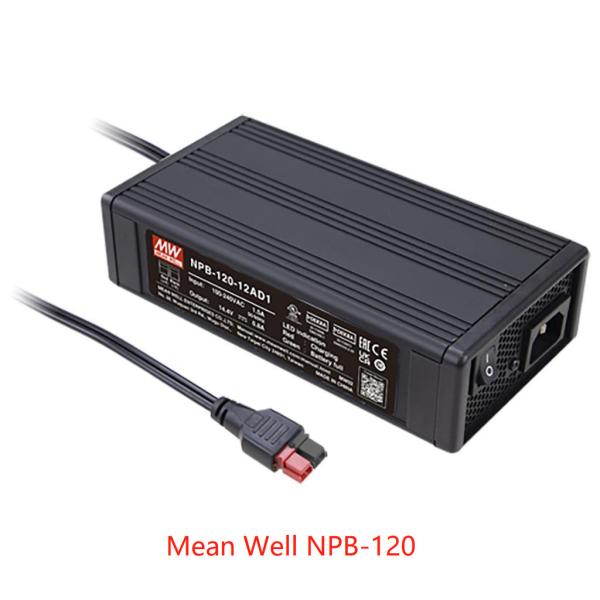

Mean Well Portable Type Metal Enclosure Charger NPB-120-12 NPB-120-24 NPB-120-48

Model

New models:

NPB-120 / NPB-240 / NPB-360

Old models:

PA-120 / PB-120

Features　:

Standard type highly reliable wide voltage range charger

Metal enclosure for better heat dissipation , leading lower touch temperature

Easy and flexible adjustment:
‧ Charging voltage adjustable through front panel (10.5~15.2V, 21~30.4V, 42~60.8V)
‧ Charging current adjustable through panel (50~100% of rated current)
‧ 2 or 3 stage selectable by DIP S.W. on front panel

Protections: Short circuit, over voltage, over temperature, battery reverse polarity

Comply with UL/EN62368-1 and IEC60335-1/2-29 dual certifications

Multiple DC output plugs selectable: Anderson, terminal block and 4 pin power pin

Technical

MODEL			NPB-120-12	NPB-120-24	NPB-120-48
			=XLR, AD1, TB
OUTPUT	BOOST CHARGE VOLTAGE(Vboost)(default)		14.4V	28.8V	57.6V
	FLOAT CHARGE VOLTAGE(Vfloat)(default)		13.8V	27.6V	55.2V
	VOLTAGE ADJUSTABLE RANGE		10.5 ~ 15.2V	21 ~ 30.4V	42 ~ 60.8V
	OUTPUT CURRENT(Typ.) Note.5		6.8A	4A	2A
	CURRENT ADJUSTABLE RANGE		50% ~ 100%
	MAX. POWER Note.3		103.4W	121.6W	121.6W
	RECOMMENDED BATTERY CAPACITY (AMP HOURS) Note.4		20 ~ 90AH	15 ~ 50AH	7 ~ 25AH
INPUT	VOLTAGE RANGE Note.5		90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE		47 ~ 63Hz
	POWER FACTOR (Typ.)		PF>0.98/115VAC, PF>0.92/230VAC@12V,PF>0.93/230VAC@24/48V at full load
	EFFICIENCY (Typ.)	XLR	86.5%	89%	90.5%
		AD1	86.5%	89%	90.5%
		TB	87%	89.5%	90.5%
	AC CURRENT (Typ.)		1.5A/115VAC 0.8A/230VAC
	INRUSH CURRENT (Typ.)		COLD START 55A at 230VAC
PROTECTION	SHORT CIRCUIT Note.6		Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover
	OVER VOLTAGE		16 ~ 20V	32 ~ 40V	64 ~ 75V
			Protection type : Shut down and latch off o/p voltage, re-power on to recover
	REVERSE POLARITY		By internal fuse open
	OVER TEMPERATURE		Hiccup mode, recovers automatically after temperature goes down
FUNCTION	CHARGING CURVE		2 or 3 stage adjustable by DIP S.W
ENVIRONMENT	WORKING TEMP.		-30 ~ +70℃ (Refer to "Derating Curve")
	WORKING HUMIDITY		20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +85℃, 10 ~ 95% RH non-condensing
	TEMP. COEFFICIENT		±0.05%/℃ (0 ~ 45℃)
	VIBRATION		10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 7)	SAFETY STANDARDS		CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004 approved
	WITHSTAND VOLTAGE		I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE		I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION		Parameter	Standard	Test Level / Note
			Conducted	BS EN/EN55032 (CISPR32),BS EN/EN55014-1	Class B
			Radiated	BS EN/EN55032 (CISPR32),BS EN/EN55014-1	Class B
			Harmonic Current	BS EN/EN61000-3-2	Class A
			Voltage Flicker	BS EN/EN61000-3-3	-----
	EMC IMMUNITY		BS EN/EN55014-2,BS EN/EN55024,BS EN/EN55035
			Parameter	Standard	Test Level / Note
			ESD	BS EN/EN61000-4-2	Level 3, 8KV air ; Level 2, 4KV contact
			Radiated	BS EN/EN61000-4-3	Level 2, 3V/m
			EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV
			Surge	BS EN/EN61000-4-5	Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth
			Conducted	BS EN/EN61000-4-6	Level 2, 3Vrms
			Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m
			Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS	MTBF		1895.4K hrs min. Telcordia TR/SR-332 (Bellcore) ; 225.8K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION		182.79649mm (LWH)
	PACKING		1.3Kg; 10pcs/ 14Kg / 1.13CUFT
NOTE	1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details. 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 3. Refer to derating curve. 4. This is MEAN WELL's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation. 5. Derating may be needed under low input voltages. Please check the derating curve for more details. 6. This protection mechanism is specified for the case the short circuit occurs after the charger is turned on. 7. The charger is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) ※ Product Liability Disclaimer:For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
