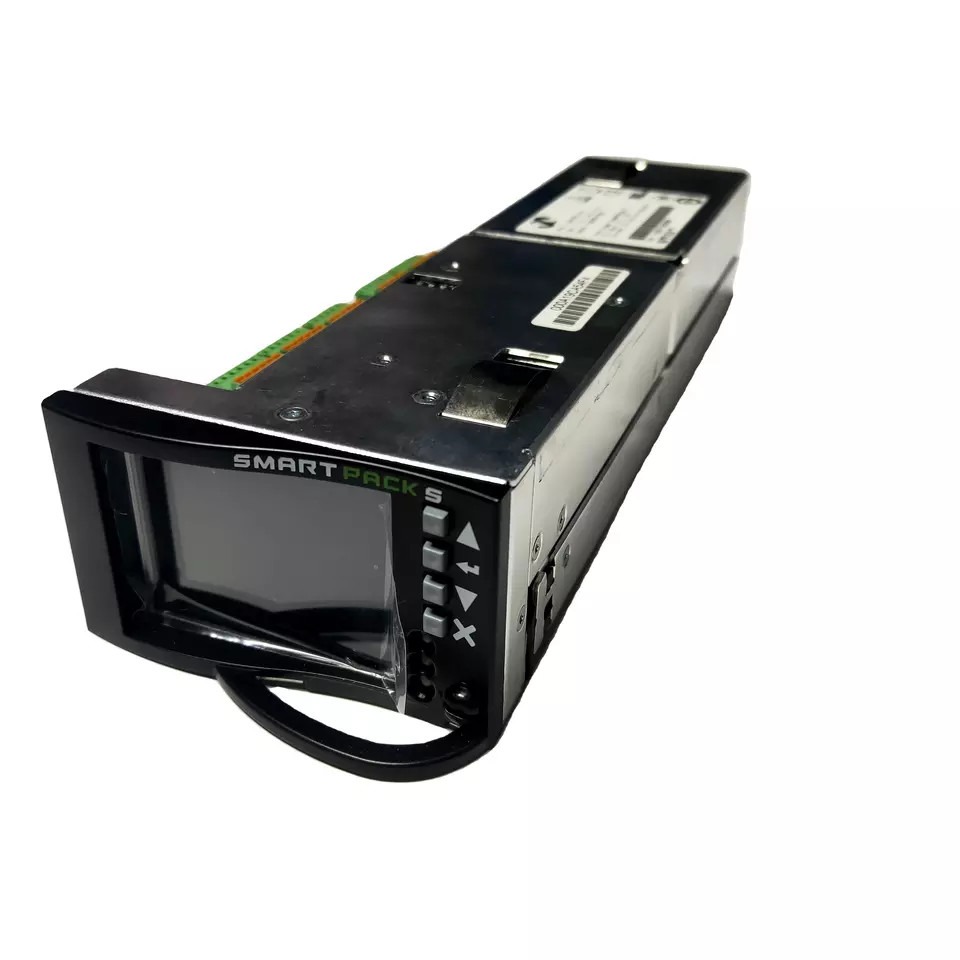

12V 24V 48V Smartpack S Controller Rectifier System 242100.410

Beijing Ding Ding Future Technology Co.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 12V 24V 48V Smartpack S Controller Rectifier System 242100.410 from wholesalers

    Buy cheap 12V 24V 48V Smartpack S Controller Rectifier System 242100.410 from wholesalers
    • Buy cheap 12V 24V 48V Smartpack S Controller Rectifier System 242100.410 from wholesalers
    • Buy cheap 12V 24V 48V Smartpack S Controller Rectifier System 242100.410 from wholesalers
    • Buy cheap 12V 24V 48V Smartpack S Controller Rectifier System 242100.410 from wholesalers
    • Buy cheap 12V 24V 48V Smartpack S Controller Rectifier System 242100.410 from wholesalers

    12V 24V 48V Smartpack S Controller Rectifier System 242100.410

    Ask Lasest Price
    Brand Name : Eltek
    Model Number : Smartpack S controller
    Certification : CE,UL
    Price : 399 USD/pc
    Supply Ability : 1000 pieces / month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    12V 24V 48V Smartpack S Controller Rectifier System 242100.410

    Factory Direct Sale Eltek Smartpack S Rectifier 12V,24V,48V,60V Rectifier System 242100.41012V 24V 48V Smartpack S Controller Rectifier System 242100.410

    Factory Direct Sale Eltek Smartpack S Rectifier 12V,24V,48V,60V Rectifier System 242100.410


    Key features

    • Graphical 2.2” high contrast, high resolution color display for easy navigation in user menu
    • Ethernet for remote or local monitoring and control via web browser
    • SNMP protocol with trap, set and get on ethernet. email of trap alarms
    • 6 programmable relay outputs

    Application :

    TELECOM – MOBILE / WIRELESS

    · RADIO BASE STATIONS/ CELL SITES

    · LTE / 4G / WIMAX

    · DISTRIBUTED ANTENNA SYSTEMS

    · BROADBAND


    TELECOM – FIXED

    · FIBER OPTICS / FTTX

    · MICROWAVE

    · CABLE

    · BROADBAND


    OFFSHORE AND PROCESS INDUSTRY

    · SAFETY AND AUTOMATION SYSTEMS (SAS)


    PARAMETERS:


    TECHNICAL SPECIFICATION
    ModelSmartpack S
    Part number242100.410
    INPUT DATA
    Voltage (nominal)10 - 75 VDC
    Power Consumption, max - no relays energized max - all relays energized3,1W (display sleep) 5,5W (display on)
    SYSTEM CONNECTIONS - SYSTEM MONITORS
    Voltage sense, system voltage support12 VDC, 24VDC, 48VDC & 60VDC
    Current sense, shunt support0 - 20mV and 0 - 60mV
    Battery fuse monitoringAuxiliary switch NO/NC, Pull up/down
    Load fuse monitoringAuxiliary switch NO/NC, Diode Matrix Pull up/down
    Ground fault detectionSimple bridge circuit detection
    SYSTEM CONNECTIONS - LVD CONTROL
    Battery disconnect1 (latched or non-latched supported)
    Load disconnect1 (latched or non-latched supported)
    INPUTS AND OUTPUTS
    Digital configurations, Inputs #1-6Auxiliary switch: NO/NC
    Analog configurations, Inputs #1-4

    Analog Voltage[±0 - 10V]

    ±4-20mA current measurement (through external 470kΩ resistor) Temperature (for NTC probe)

    Analog configurations, Inputs #5-6Analog Voltage[0-75V] Symmetry measurement
    Output configurations, Outputs #1-6 (alarms)

    6x Relay–Dry/Form C

    Configurable Normally Open/Closed [Max capacity 75V/2A/60W]

    USER INTERFACE
    Local

    2.2” TFT 65k Colour display QVGA resolution

    4 keys

    Ethernet port

    10/100 BASE-T

    HP Auto MDI/MDI-X

    IP protocols: HTTP / SSL, SNMP v3, MODBUS TCP and pComm UDP (PowerSuite)

    Serial port

    RS-232 and RS-485 on RJ11 connector

    Serial protocols: MODBUS RTU, Modem Call-Back/SMS reporting (PSTN or GSM), COMLI, CSCP and pComm (PowerSuite)

    GENERAL SPECIFICATIONS
    Dimensions (WxHxD)72.2 x 43.0 x 220.7mm (2.8 x 1.7 x 8.7”)
    Temperature RangeOperating -20 to +65˚C (-40 to 149˚F)
    DESIGN STANDARDS
    Electrical safetyUL 60950-1-3rd edition, EN 60950-1-3rd edition
    EMC

    ETSI EN 300 386 V.1.4.1

    EN 61000-6-1 / -2 / -3 / -4

    FCC Part 15 Subpart 109

    Marine*)DNVGL-CG-03391)
    Environment

    ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2)

    ROHS compliant

    1)Only valid for part number 242100.410M

    Eltek Monitoring Comparsion


    CAN Device

    Start

    End

    Numb of Nodes

    Smartpack

    1

    14

    14

    Smartpack 2 Basic

    1

    10

    10

    Smartpack 2 Master

    11

    14

    4

    Smartnode

    17

    30

    14

    Battery Monitor

    33

    46

    14

    Load Monitor

    49

    62

    14

    Flex Monitor

    65

    78

    14

    I/O monitors

    81

    94

    14

    Mains Monitor

    97

    110

    14

    12V 24V 48V Smartpack S Controller Rectifier System 242100.410

    12V 24V 48V Smartpack S Controller Rectifier System 242100.41012V 24V 48V Smartpack S Controller Rectifier System 242100.41012V 24V 48V Smartpack S Controller Rectifier System 242100.410


    12V 24V 48V Smartpack S Controller Rectifier System 242100.41012V 24V 48V Smartpack S Controller Rectifier System 242100.410

    12V 24V 48V Smartpack S Controller Rectifier System 242100.410
    12V 24V 48V Smartpack S Controller Rectifier System 242100.410
    Solutions
    We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

    FAQ :
    1. How do you control the quality?
    A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

    2. What is your minimum order quantity?
    A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

    3. Can you introduce your company?
    A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

    4. What are the advantages of your company?
    A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

    5. Can i send samples?Report it to me along with the price?
    A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

    6. How do your company deal with the problem on quality?
    A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

    7 What about the quality ?
    A:100% original with new package. we will test each item before posted to make sure each item with good quality.

    8 How many months for guarantee ?
    A: 1 year quality guarantee

    9 How to deal with any inferior -quality goods ?
    A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
