3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input

Beijing Ding Ding Future Technology Co.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input from wholesalers

    Buy cheap 3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input from wholesalers
    • Buy cheap 3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input from wholesalers
    • Buy cheap 3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input from wholesalers
    • Buy cheap 3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input from wholesalers

    3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input

    Ask Lasest Price
    Brand Name : INVT
    Model Number : HR31
    Certification : CE,UL
    Price : 1 USD/pc
    Supply Ability : 1000 pieces / month
    Delivery Time : 6-8 weeks
    • Product Details
    • Company Profile

    3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input

    3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input

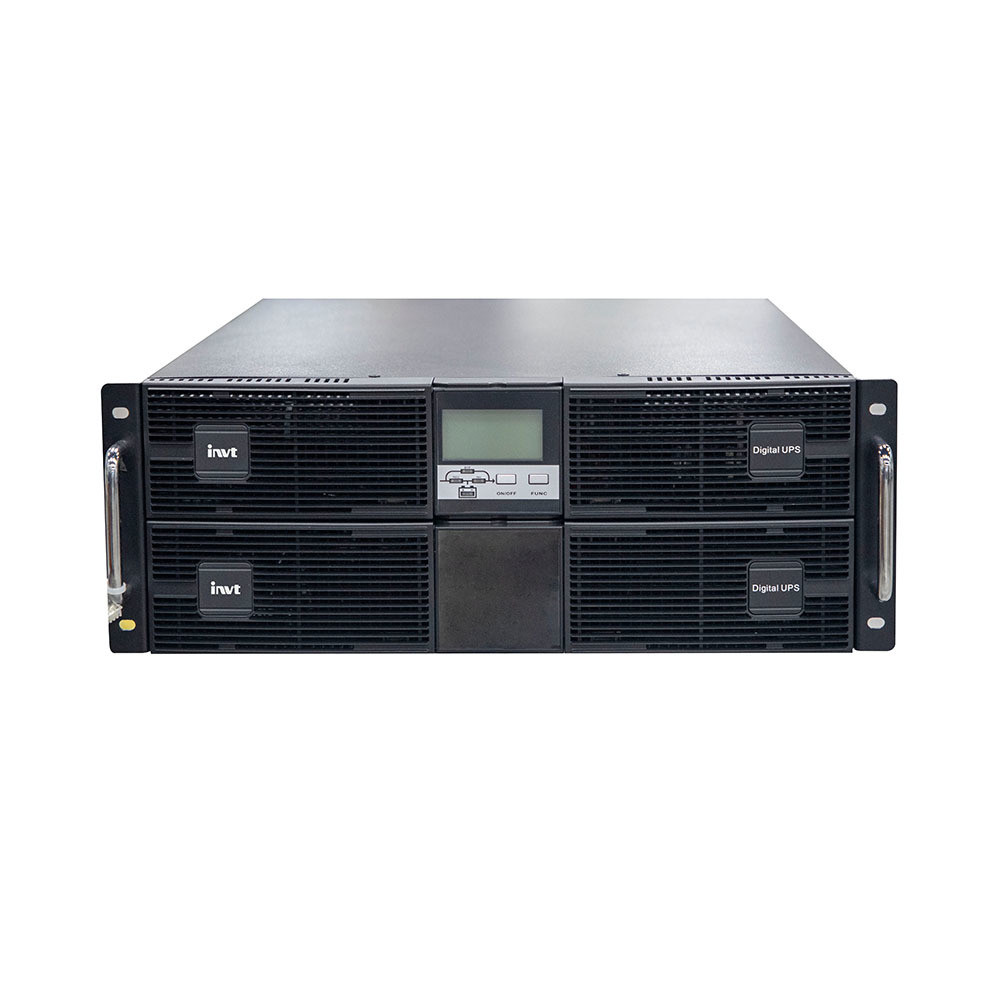

    HR31 Series Rack Online UPS 15-20kVA (220V230V240V)


    The series 3:1 Rack Online UPS is online double-conversion UPS with full DSP control technology. With high input and output power factor, self-adjusting output frequency and network management. The series has 15kVA, 20kVA can be chosen.



    HR3115XL

    HR3120XL


    INPUT

    Cold Start

    YES

    Phase

    Three phase in/Single phase in, single phase out

    Acceptable Input Voltage

    L-L 190VAC~499VAC

    Input Current

    -Rating(nominal input voltage)

    25A/380V

    33A/380V

    -Input Power Factor

    ≥0.99

    -Input current distortion

    ≤4%

    -Input Frequency Range

    40~70Hz

    OUTPUT

    Frequency adaptable

    Settable

    Power

    -Power

    15KVA

    20KVA

    -Power(kW)

    15KW

    20KW

    Output Voltage

    -Waveform(Bat. Mode)

    Pure Sine Wave

    -Nominal voltage

    L-N 220VAC/230VAC/240VAC, 200VAC/208VAC(PF=0.9)

    BYPASS

    Input system

    Common input (split bypass is optional)

    Efficiency

    -Line mode with battery full charged

    94.2%@100% load, 95%@70% load

    94.2%@100% load, 95%@50% load

    -ECO mode

    98.0%

    Noise(1m away)

    <62dB

    <62dB

    Overload Capability(Inverter)

    105% to 110% : Transfer to bypass after 10 mins.

    111% to 125% : Transfer to bypass after 1 mins.

    126% to 150%: Transfer to bypass after 30s

    Crest Factor

    3:1

    BATTERY

    Quantity

    16-20PCS settable

    16-20PCS settable

    DC Voltage

    192VDC default, settable

    Charger

    -Charging current (max)

    5A max,settable

    5A max,settable

    Indicator & Alarm

    -Display

    LED+LCD

    Working Enviroment

    -storage

    -40~70℃

    -working

    0~40℃, huminity 95% non condesation, attitude<3000m (@full load)

    Mechanical

    -W╳D╳H (mm)

    438*744*173(4U)

    438*744*173(4U)

    -Net Weight (KG)

    30

    30

    -Package Weight (KG)

    33

    33

    Color

    Black default

    3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input

    3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input

    3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input


    3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input

    3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input
    3/1 15kva 20kva Rack Type Online Double Conversion Ups 220V/230V/240V Input
    Solutions
    We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

    FAQ :
    1. How do you control the quality?
    A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

    2. What is your minimum order quantity?
    A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

    3. Can you introduce your company?
    A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

    4. What are the advantages of your company?
    A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

    5. Can i send samples?Report it to me along with the price?
    A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

    6. How do your company deal with the problem on quality?
    A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

    7 What about the quality ?
    A:100% original with new package. we will test each item before posted to make sure each item with good quality.

    8 How many months for guarantee ?
    A: 1 year quality guarantee

    9 How to deal with any inferior -quality goods ?
    A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
