    STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static

    Ask Lasest Price
    Brand Name : Custom -made
    Model Number : Custom made
    Certification : CE
    Price : USD 1
    Payment Terms : T/T
    Supply Ability : 3000 pieces per month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static

    STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static

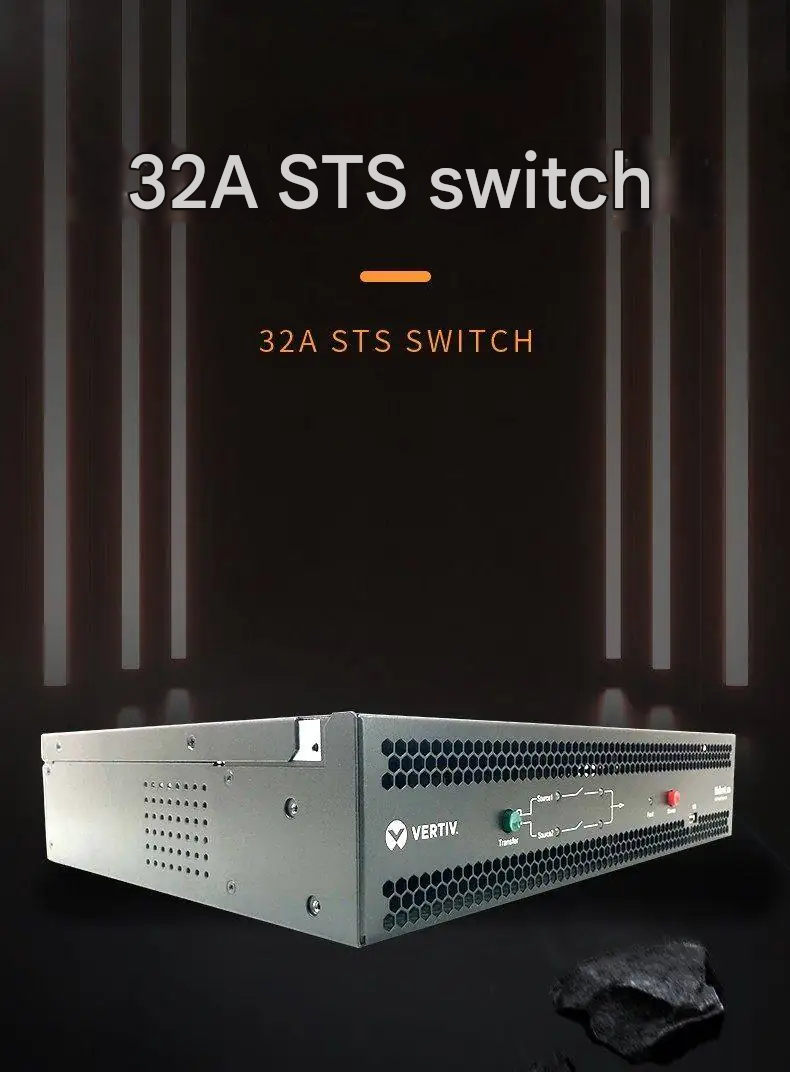

    The LTS™ is a single-pole automatic transfer device with the capacity of 10/16/32 A. It performs the core functions of detection and transfer in the dual-bus system composed of two ways of AC power, and is used in the high-end uninterruptible power supply applications that require high power supply reliability.


    Technical Parameters:


    Technical indicators

    project

    (10A/16A)Specifications

    32A indicator

    enter

    input source

    Twoinput sources

    Input method

    1Φ+N+PE

    Rated voltage

    220/230Vac

    Ratedfrequency

    50/60Hz

    voltage range

    150~300Vac

    Frequency range rated frequency

    ±5Hz

    Voltage distortion

    <10%

    output

    power factor

    0.75~1.0 Leading or lagging

    0.8~1.0 Lead or Lag

    Overload capacity

    125%,30min

    Efficiency(100%linear load)

    99%

    98%

    switch

    Munterofrsh

    2 poles

    Automatic switching interval

    <6ms(typical),<11ms(maximum)

    Envlironmental parameters

    project

    normal range

    wekig tarperue

    0~40℃

    storage temperature

    -40~70℃

    relative humidity

    5~95%,no condensation

    altitude

    3000m

    Mechanical parameters

    Dimensions(height x width x depth)

    weight

    ahtacldàaapfonalacure

    44mm×430mm×250mm(10A/16A)

    4.5kg

    5kg

    84mm×430mm×340mm(32A)

    5kg

    6kg


    STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static


    STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static

    STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static

    STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static

    Solutions
    We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
    FAQ :
    1. How do you control the quality?
    A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
    2. What is your minimum order quantity?
    A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
    3. Can you introduce your company?
    A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
    4. What are the advantages of your company?
    A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
    5. Can i send samples?Report it to me along with the price?
    A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
    6. How do your company deal with the problem on quality?
    A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
    7 What about the quality ?
    A:100% original with new package. we will test each item before posted to make sure each item with good quality.
    8 How many months for guarantee ?
    A: 1 year quality guarantee
    9 How to deal with any inferior -quality goods ?
    A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
