Brand Name : | Custom -made |
Model Number : | Custom made |
Certification : | CE |
Price : | USD 1 |
Payment Terms : | T/T |
Supply Ability : | 3000 pieces per month |
Delivery Time : | 1-2 weeks |

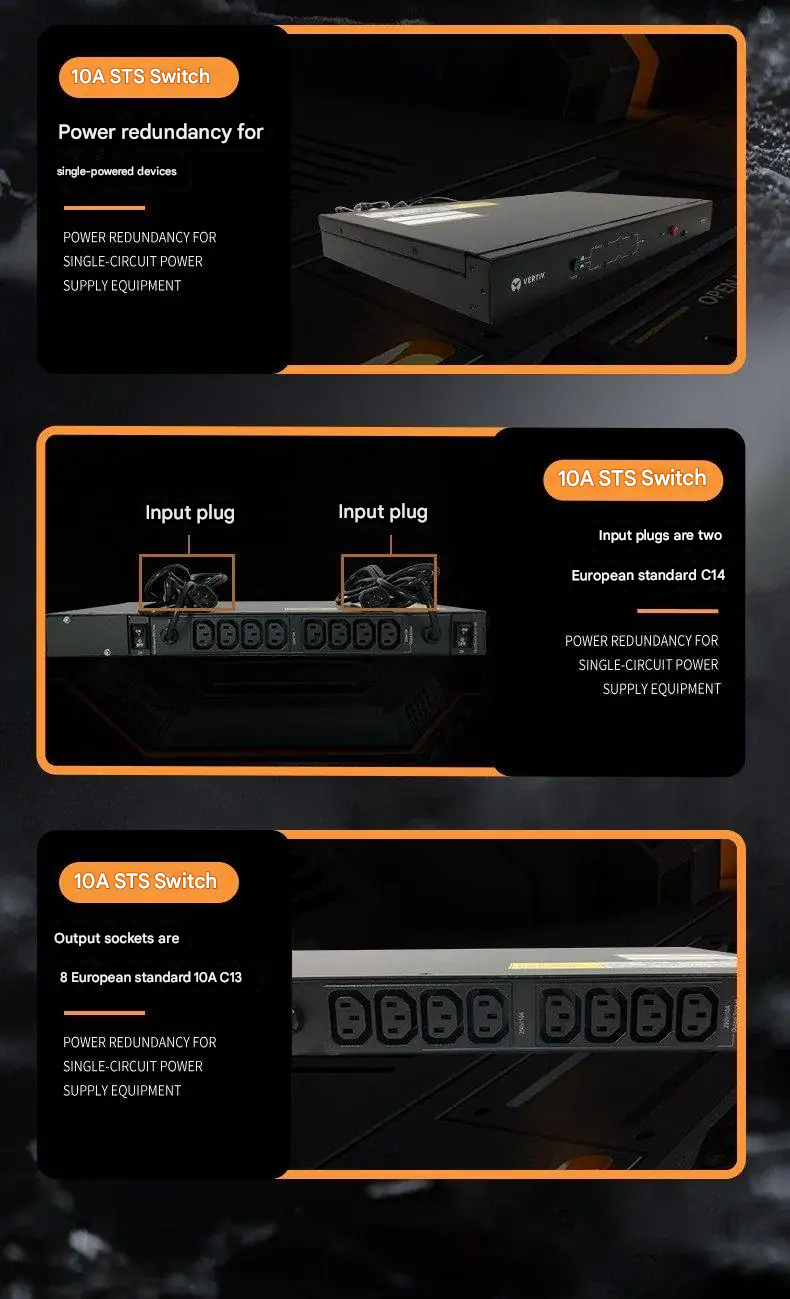

The LTS™ is a state - of - the - art single - pole automatic transfer device available in 10 A, 16 A, and 32 A capacities. In a dual - AC - powered bus system, it acts as a vigilant sentinel, constantly detecting fluctuations and irregularities in the power supply. Its rapid - response transfer function is designed to minimize downtime, ensuring seamless power continuity. For high - end uninterruptible power supply applications, where the cost of power outages in terms of equipment damage, data loss, and business interruption is high, the LTS™ provides an invaluable solution, significantly enhancing the overall reliability and robustness of the power infrastructure.
Technical Parameters:
Technical indicators | |||
project | (10A/16A)Specifications | 32A indicator | |
enter | input source | Twoinput sources | |
Input method | 1Φ+N+PE | ||
Rated voltage | 220/230Vac | ||
Ratedfrequency | 50/60Hz | ||
voltage range | 150~300Vac | ||
Frequency range rated frequency | ±5Hz | ||
Voltage distortion | <10% | ||
output | power factor | 0.75~1.0 Leading or lagging | 0.8~1.0 Lead or Lag |
Overload capacity | 125%,30min | ||
Efficiency(100%linear load) | 99% | 98% | |
switch | Munterofrsh | 2 poles | |
Automatic switching interval | <6ms(typical),<11ms(maximum) | ||
Envlironmental parameters | |||
project | normal range | ||
wekig tarperue | 0~40℃ | ||
storage temperature | -40~70℃ | ||
relative humidity | 5~95%,no condensation | ||
altitude | 3000m | ||
Mechanical parameters | |||
Dimensions(height x width x depth) | weight | ||
ahtacldàaapfonalacure | |||
44mm×430mm×250mm(10A/16A) | 4.5kg | 5kg | |
84mm×430mm×340mm(32A) | 5kg | 6kg |
Solutions
We provide a complete solutions including site survey, propose
professional plan according to customer’s request ,technical
support, and maintenance service for Telecommunication Companies in
and out of China. We have a competent team and a network of trusted
Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios,
load and full load and current sharing test to ensure the quality
of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The
only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction
document later to give you a more comprehensive and direct
introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent
renewal of supply, flexible provided according to different to
different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and
the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It
has already had a certain reputation. We will carefully analyze it.
If it is indeed our quality problem, you can rest assured that it
will do things according to the contract agreement and will never
let you have any after the worries, our service team will be happy
to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before
posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad
quality products within guarantee time.
![]() |
