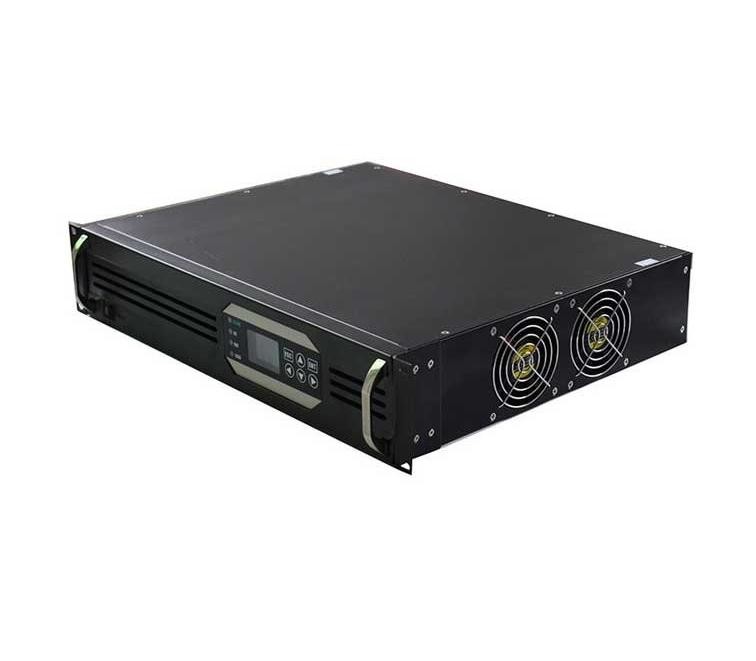

    High Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVAR

    Ask Lasest Price
    Brand Name : BWITT
    Model Number : 110/220-3KVAS
    Certification : CE,UL
    Price : 1 USD/pc
    Payment Terms : L/C,T/T
    Supply Ability : 1000 pieces / month
    Delivery Time : 6-8 weeks
    • Product Details
    • Company Profile

    High Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVAR

    High Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVAR

    The redundant Parallel Connection inverter is an inversion device that Converters 220Vdc Power Supplied by DC Power Supply into 220Vac 50Hz Sinusoidal AC Power. it is Designed with Complete Isolation of input and Allows Hot Plugging and Parallel Connection redundancy. it is a product specially designed for users with high requirements for power supply reliability and maintainability




    Product Form

    Rated Power

    3KVA/2.4KW

    Dimension

    19’’ 2 RU

    W482*H88*D390mm

    Input Parameters

    DC Input

    220Vdc

    DC Input Range

    185285vdc

    Bypass Input Range

    176~264Vac

    Bypass Switchover time

    8-12ms

    AC Output

    Rated output Voltage

    220Vac

    Frequency

    50Hz

    Load Adjustment Rate

    <1%

    Frequency Accuracy

    <0.1%

    Factor

    3:1

    PF

    Peaking@89%

    Waveform Distortion

    Resistive full load <3%, Non Linear Full Load <5%

    Dynamic Response

    Voltage Transition Range <3%,Transition Response Recovery time 60ms(Load From 0~100)

    Current Non- Uniformity under Parallel Connection

    <3% Effective Value of Rated Current

    Overload Capacity

    Over Load Current<105%, Continuous Operation

    Over Load Current105~125%, Shutdown after 10 min

    Over Load Current 125~150%, Shutdown after 1 min

    Over Load Current>150%, Shutdown in 20ms

    Protection Function

    Protection Against Opposite Connection of input, Input Under/over Voltage, Output Overload, Output Short Circuit, And Over Temp.

    Communication

    Communication Interface

    Rs485 & Dry Contact ,SNMP optional

    Ambient Environment

    Dielectric Strength

    2KVA,1 Min

    Noise(1m)

    <45dB

    Ambient Temperature For Operation

    -10~50

    Ambient Temperature For Transport and Storage

    -40~70

    Relative Humidity

    0~90% ,without Condensation

    Relative altitude (M)

    3000m, At 1500 ~3000 Output Derating 1% for each 100m of Altitude increase

    Declaration of Conformity

    LVD

    EN IEC 62368-1:2020+A11:2020

    EMC

    EN 55032:2015+A11:2020

    EN 55035:2017+A11:2020

    EN IEC 61000-3-2:2019

    EN61000-3-3:2013+A12019


    High Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVAR


    High Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVAR

    High Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVAR

    High Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVAR

    High Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVAR



    High Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVARHigh Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVARHigh Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVAR

    High Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVAR
    High Frequency Pure Sine Wave Power Inverter 220/220V 19 Inch Rackmount BWT220/220-3KVAR
