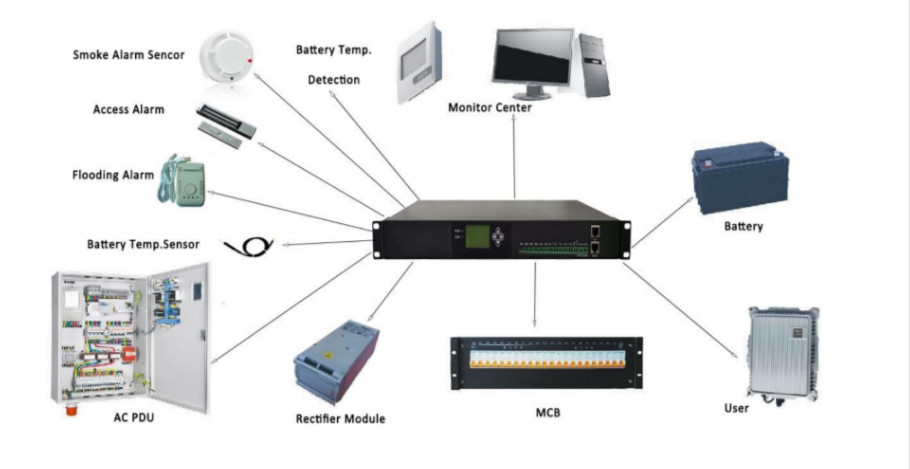

The M30 is a compactsite monitoring module that captures module voltage, current, and alarm information, and adjusts module current limit, overvoltage point, and control module power on/off. M30 provides RS485 communication interface (1 way north, 2 way south), rectifier module communication interface (support RS485 and CAN), sensor interface (ambient temperature and humidity, battery temperature), 6 input dry contact interface (can Associated access control, flooding, smoke, lightning protection, oil machine, temperature control failure, battery out of position and standby DI), 1 channel three-phase AC detection port, 6 output dry contact interface, 9 channel current detection, 2 channel battery melting Wire and 1 total load fuse detection, 5 levels power-down management, 9-channel user power record, battery management, system energy saving, etc., to meet the user's demand for power monitoring functions. The M30 supports the sound and light alarm, the access of the smart device, the dry contact upload, the RS485 upload, and the TCP/IP upload mode. The environment information and alarm information will be reported.

Specification

​

Ding Ding Future Power Company provide professional solutions to the telecommunications and network power industries across Africa,the Middle East , South America and Southeast Asia clients.

we have grown rapidly since our inception in 2017 as a small company for telecom after-sale service for famous brands.

After several years development, we can supply several brands such as Vertiv, Eltek, ZTE, DPC, VAPEL, DELTA, CE+T,eNatel etc.

With rich experience for both AC and DC applications ,we offer turn key solutions that simplify project execution and procurement with a single point of contract. Treat us as an extension of your Telecom and IT facilites departments ready to help solve any type of power problem or complete a new power project together.

At the moment, we have 5 tech engineers and 15 skilled workers for produce indoor telecom cabinet, outdoor telecom cabinet, inverter system , inverter cabinet, big systems which used in telecom, base stations, railways , 4G/5G, industiral etc.

For any projects ,tender case, we will response in 72 hours; for small cases, we will response in 24 hours.

We welcome any clients around the world to inquiry with us at any time !
