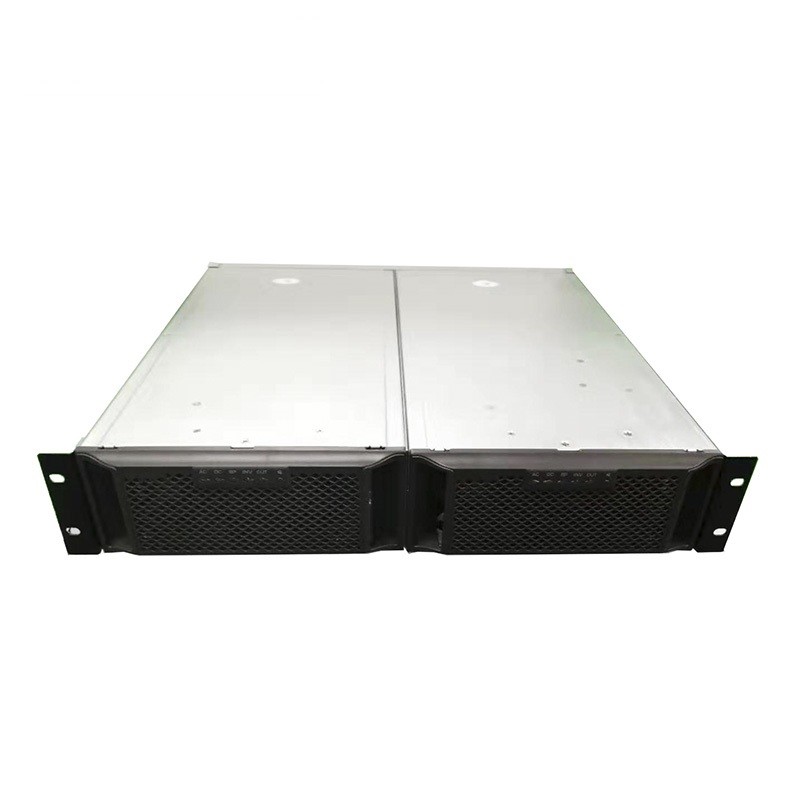

BWT1500 serial 220Vdc &220Vdc modular parallel connection
inverter is an inversion device that converts 220V dc/220Vdc power
supplied by communication DC power supply into 220V/50Hz sinusoidal
AC power. Through conversion on the input DC power, the Pure Sine
wave inverter offers users stable and Non-distorted AC power. In
case of a power failure in business places, it offers key devices
the power of flexible output voltage and frequency.
Feature
Digital control: It adopts 32-bit DSP full digital and
high-frequency SPWM technology, featuring strong anti-interference
ability, fast calculation speed, high intelligence, accurate
control precision and pure output waveform

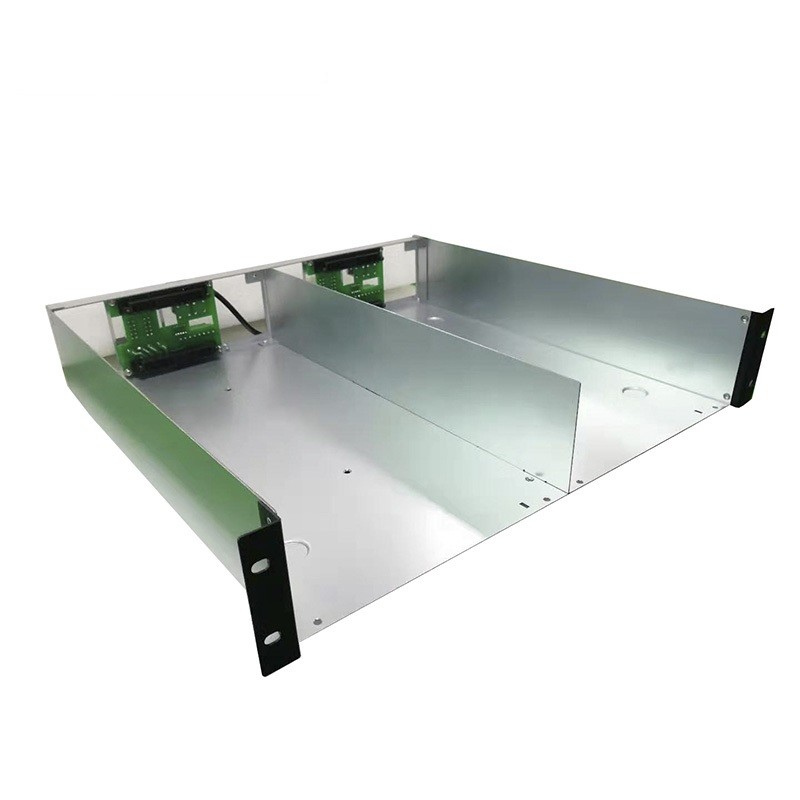

N+1 parallel redundant design: It can form an N+1 parallel
redundant power supply system. The modules are backup each other,
with high reliability and flexible configuration.Large 128*64
digital LCD display data information,4 led display working;
No master-slave parallel technology: The operation and parallel
connection of each module are independently controlled by the
built-in DSP, no single point of failure, independent flow between
modules.
With hot plugging: no need to do any parameter setting and
operation, plug and play, the module automatically enters the
normal working state, maintenance and replacement is simple and
fast.
Module built-in bypass: Users can choose inverter priority or
bypass priority
Monitoring management: indicator panel, fault sound and light
alarm, RS485 communication interface and fault dry contact.
Protection function: It has the functions of input over-voltage,
output over-voltage, over-temperature, short-circuit and so on.
High power density: 1/2 19〞 width design, the volume is only half
the width of the conventional inverter, saving space and convenient
parallel.
Specification
| Technical Data |

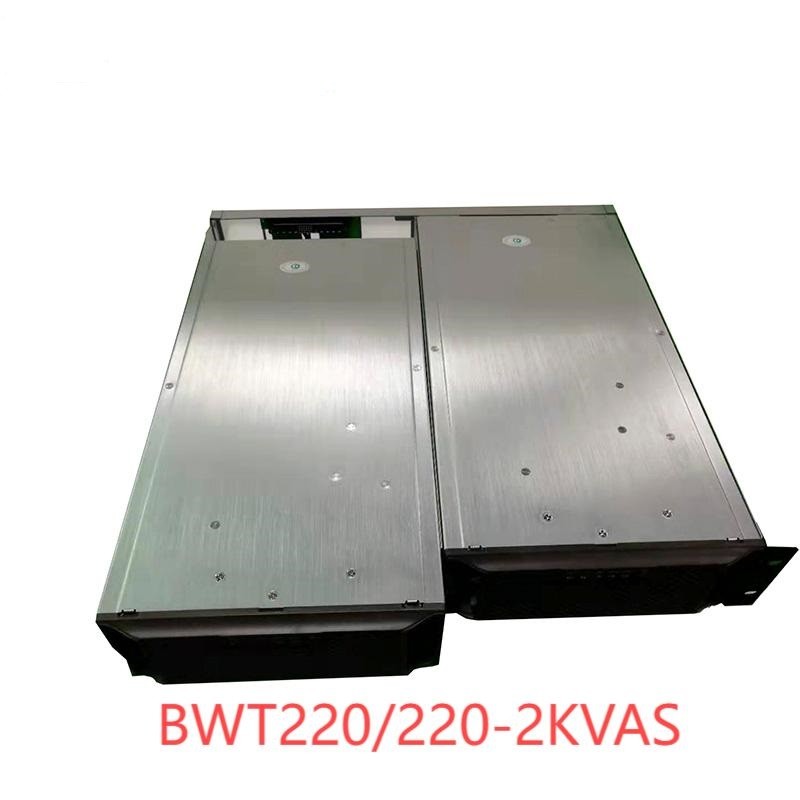

| Model | BWT220/220-2KVAS |
| INPUT |
| DC Input Voltage | 220Vdc |
| DC Input Current | 9.1Max |
| DC Input Voltage Range | 190-270V |
| Backfill Noise Current | ≤10% |
| PF | 0.8 |
| AC BY-PASS INPUT |
| Input Voltage Range | 270V-190V(±10Vac) |
| Rated Input Current | 9.1A |
| Transfer Time | <12ms |
| OUTPUT |
| Output Capacity | 2000VA |
| Rated Output Capacity | 1600W |
| Rated output Voltage | 220VAC |
| Rated Output Current | 7.3A |
| Output Voltage Range | 220Vac(Tolerance ±1.5% ) |
| Output Efficiency | ≥85% |
| Output Frequency | 50Hz |
| Frequency Range | 43~67Hz |
| Output Wave | Pure sine wave |
| THD | ≤3% (Line Load) |
| Switch Time (By pass to Inverter mode) | ≤12ms (With Load) |
| Output Frequency Range | 50±0.1% or 60±0.1% |
| Dynamic Response Time | 5%(load 0←→100%) |
| PF | 0.8 |
| Output Over Current Protection |
| Over Load Capacity | Continue working 10min @105%<load<125% |
| Over Load Capacity | Continue working1min @ 125%<Load<150% |
| Over Temp. Protection | Yes |
| short circuit Protection | Yes (Don’t test under AC Connect) |
| Reverse connection protection | Yes |
| ENVIRONMENT TEST PERFORMANCE |
| Ambient Temp. | -20~ +50℃ |
| High temperature operation | 50±2℃ (rated load 24H) |
| Low temperature operation | -20±2℃ (rated load 24H) |
| High temperature storage | 80±2 ℃,24H |
| Low temperature storage | -40±2℃,24H |
| Humidity | 0~90%,No moisture condensation |
| Operating Altitude (m) | Altitude Full power up to 2000m.derating -2% / 100m, max altitude
5000m |
| PARALLEL MODE |
| Max Parallel quantities | 8 units |
